Lawn Mower DFS
1.High welding proceses and surface quality,low weight and power.
2.Cast-iron gearbox with free wheel,sturdy toothed belts,high quality blade.
3.Suitable for small to medium sized tractors.
4.Spiral blade axle to save the power and protect the gearbox
5. Hydraulic side shift system
Send Inquiry
Product Description
1.Industrial Machinery/Agricultural Machinery & Equipment/Other Farm Machines
2.Medium duty Tractor Flail Mower Flail Mower Atv Front
DFS FLAIL MOWER

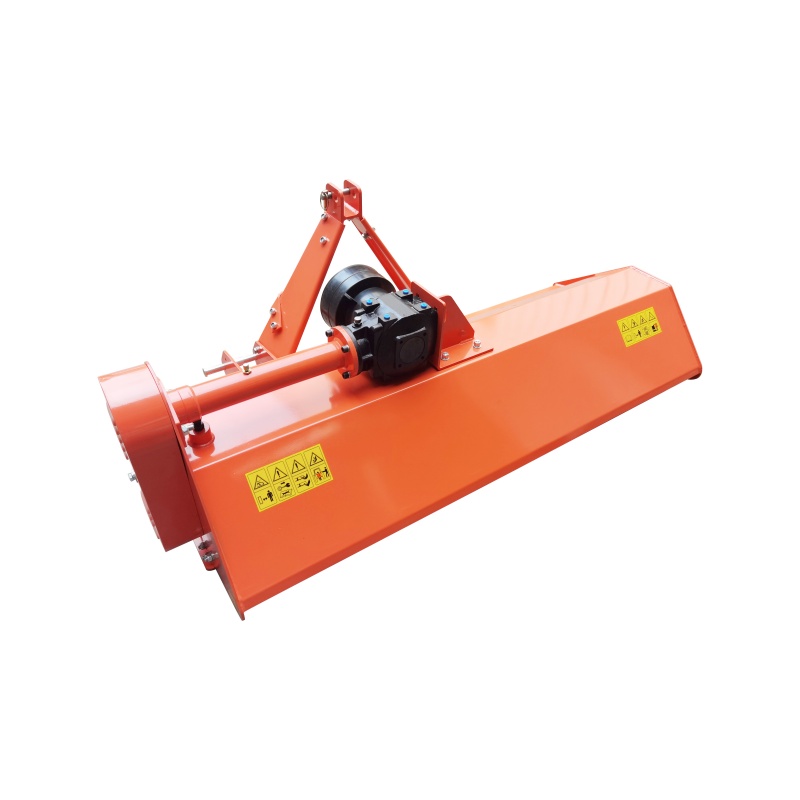

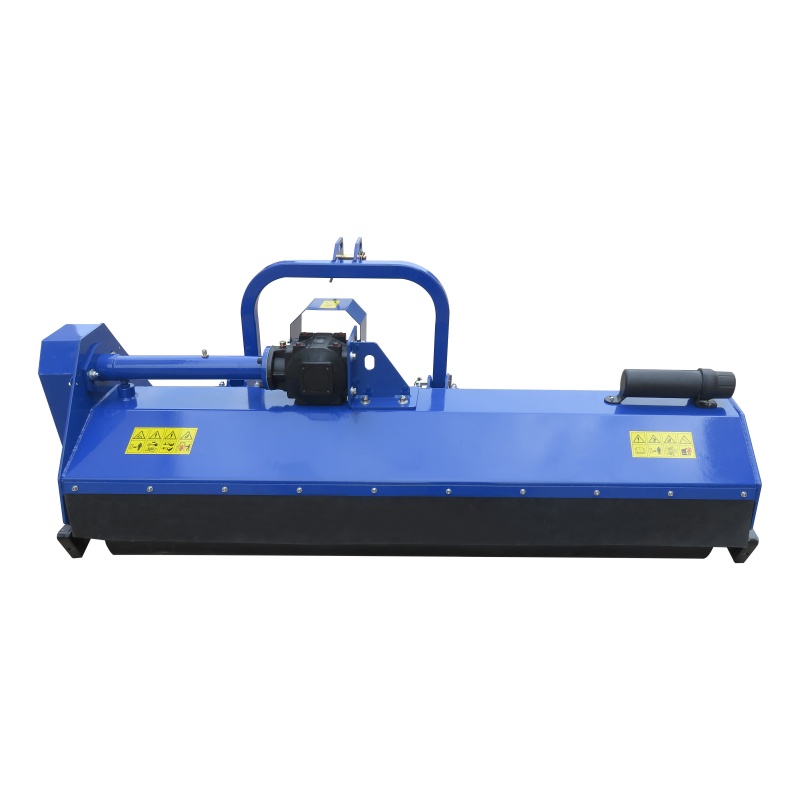

ther recommendations for your business
(BELH BELM EFL EFM …. )
Basic Info
Model NO.DFS
Specificatio CE
Origin Jiangsu Province,China(Mainland)
Transport Package ron Pallet
Trademark JUMA
Production Capacity 5000 PCS/Year
Product descriptions from the supplier

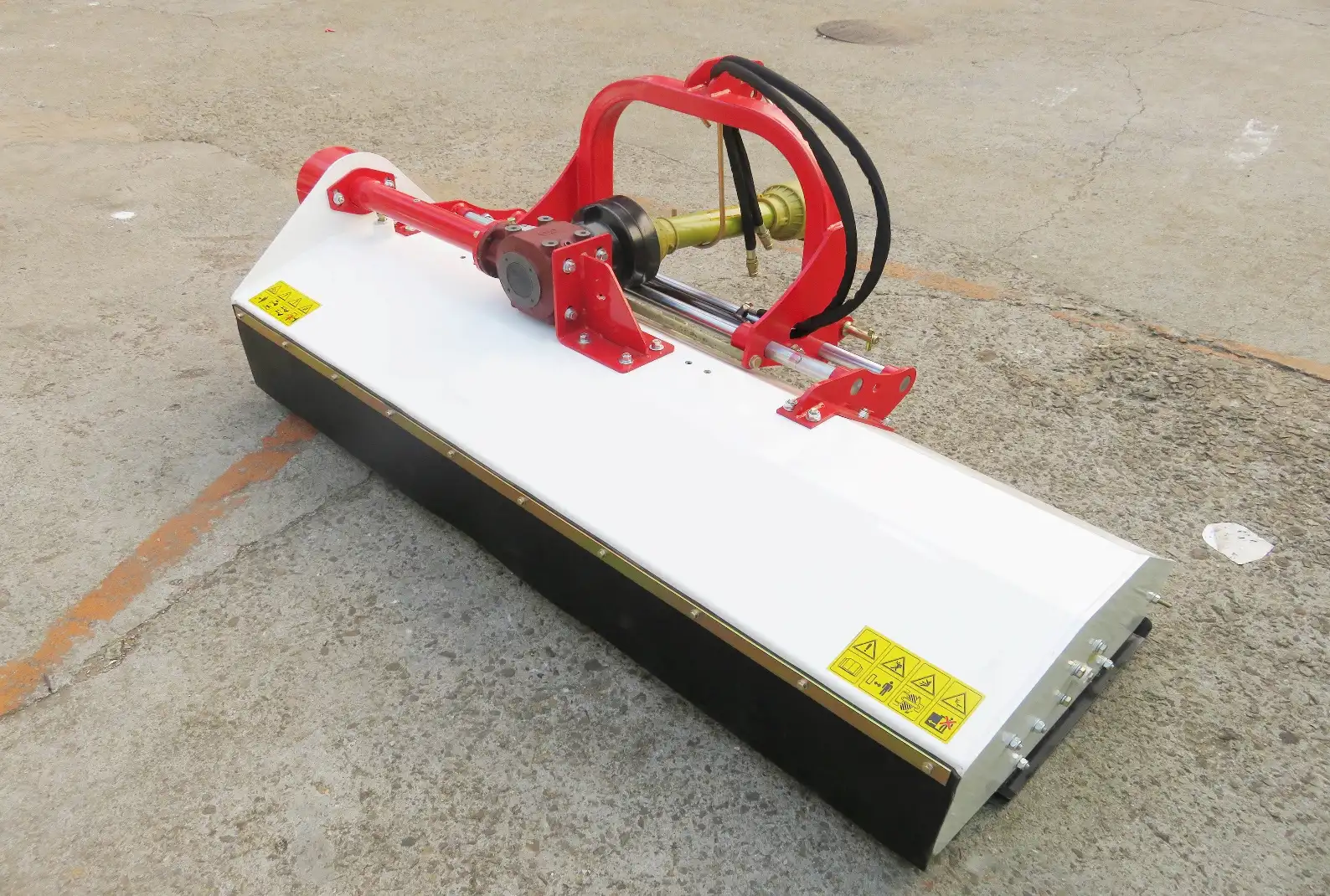

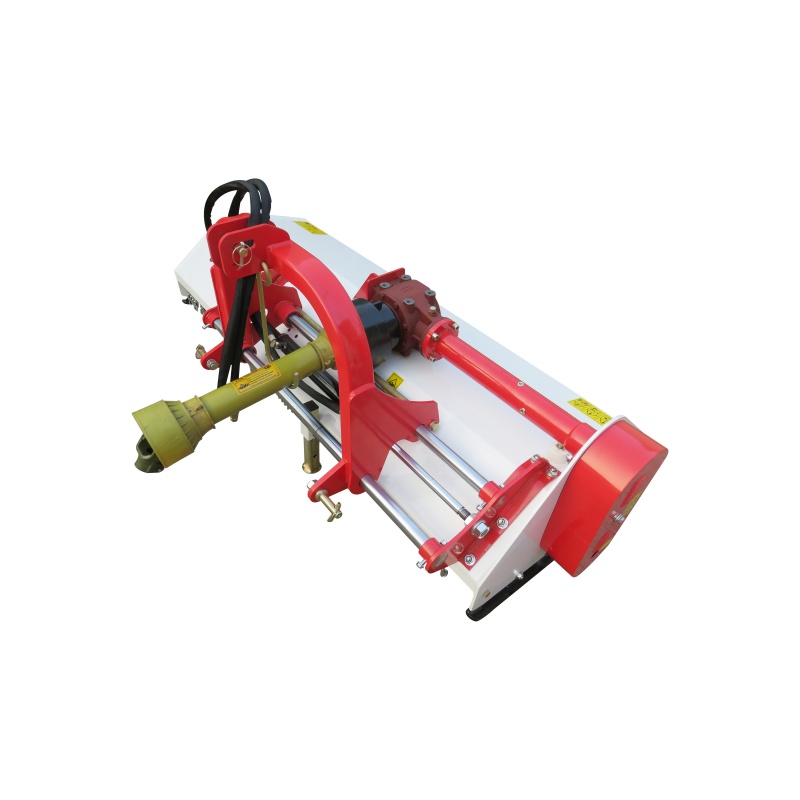

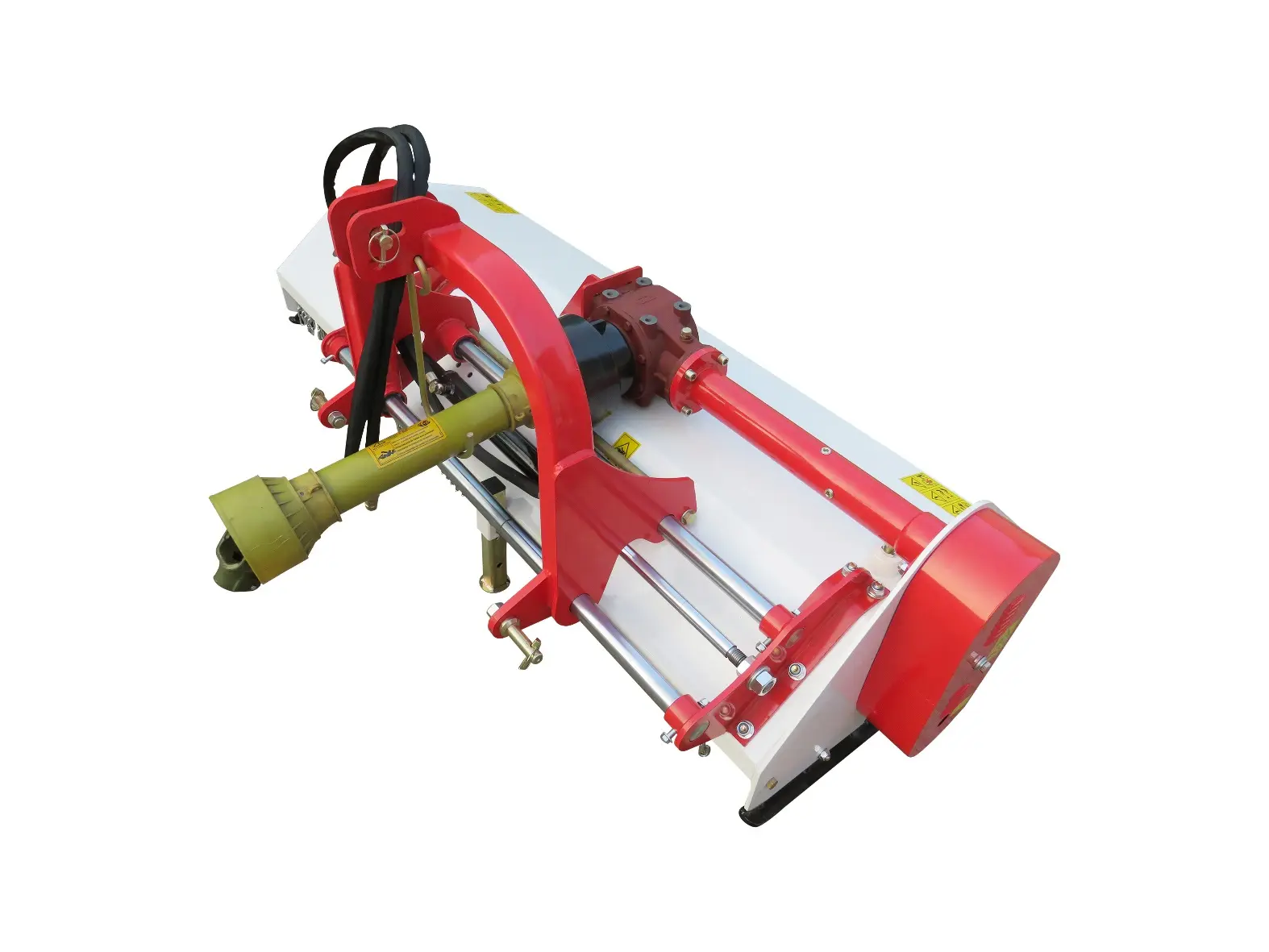

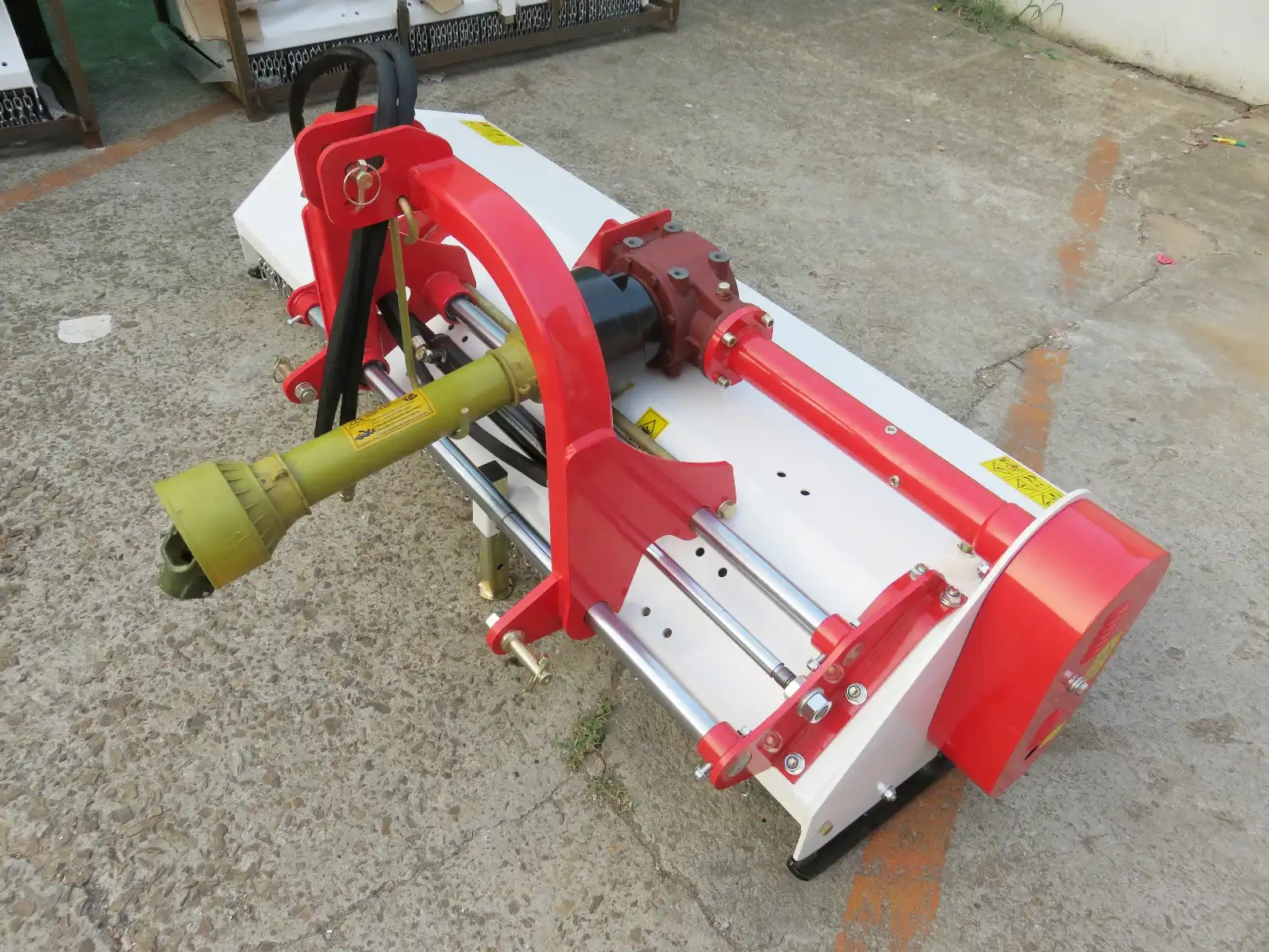

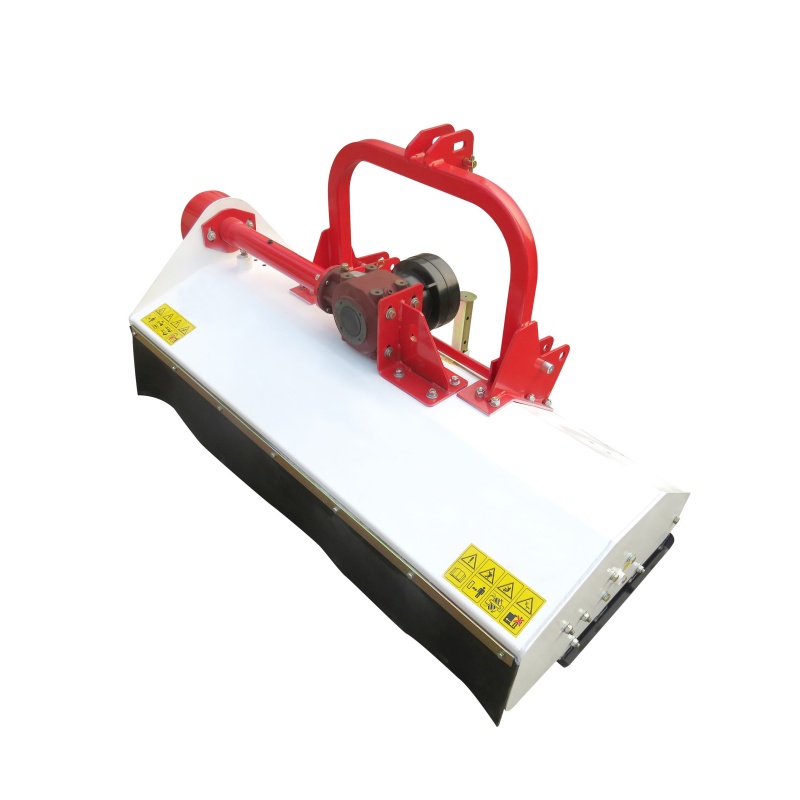

DFS Flail Mower
1.High welding proceses and surface quality,low weight and power.
2.Cast-iron gearbox with free wheel,sturdy toothed belts,high quality blade.
3.Suitable for small to medium sized tractors.
4.Spiral blade axle to save the power and protect the gearbox
5. Hydraulic side shift system
Parameters
25-50hp tractor Medium duty mower double quantity blades with ce
| Model | DFS 135 | DFS 155 | DFS 175 | DFS 195 | DFS 205 |
| Dimensions(mm) | 1505*950*810 | 1705*950*810 | 1905*950*810 | 1905*950*810 | 1905*950*810 |
| Structure Weight (kg) | 350 | 375 | 400 | 425 | 450 |
| Cutting width (cm) | 135 | 155 | 175 | 195 | 205 |
| Cutting height (mm) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 |
| Rotor diameter (mm) | 108 | 108 | 108 | 108 | 108 |
| Belt No. | 3 | 4 | 4 | 4 | 4 |

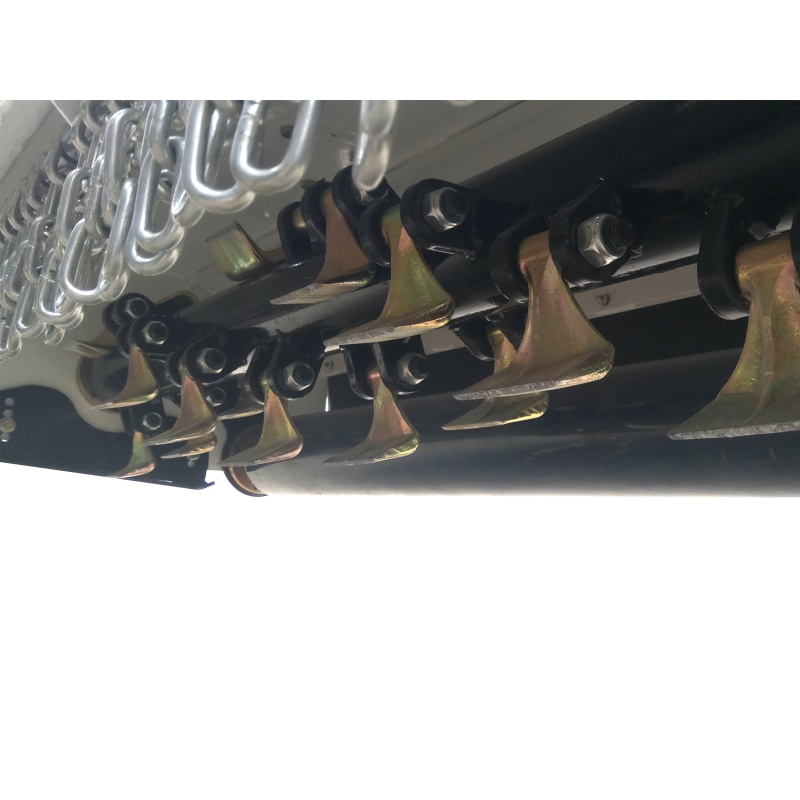

| Hammer Number | 20 | 24 | 28 | 32 | 32 |
| Y blade | 40 | 48 | 56 | 64 | 64 |
| Power Required (hp) | 20-30 | 30-40 | 40-50 | 40-50 | 40-50 |
| Tractor PTO Speed | 540rpm | ||||
| Driveline Size | T4 | ||||
| Belt | B-section | ||||
| Belt Adjustment | Manual Mechanical Tension | ||||

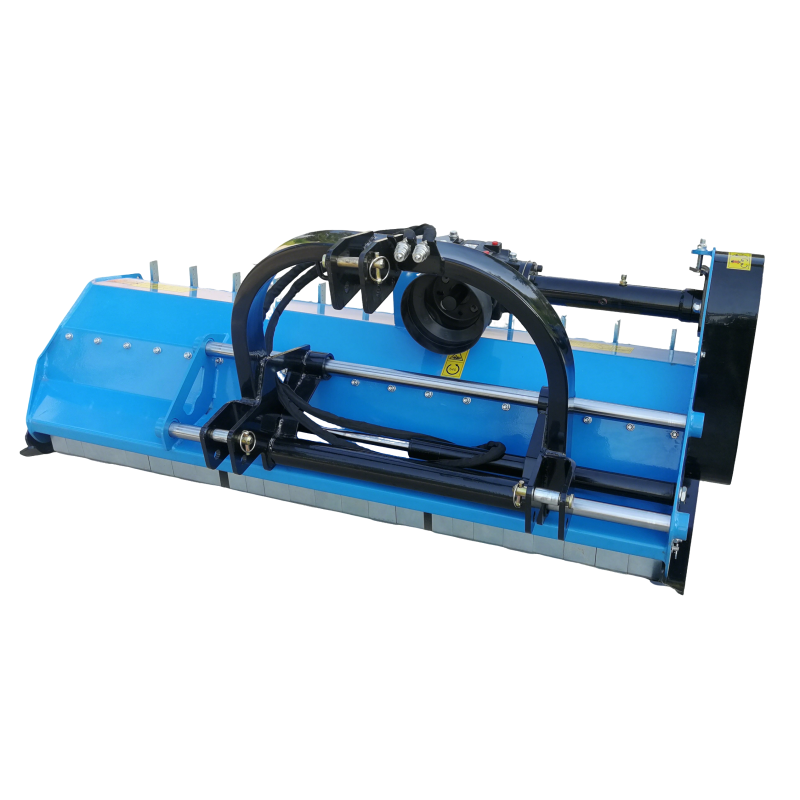

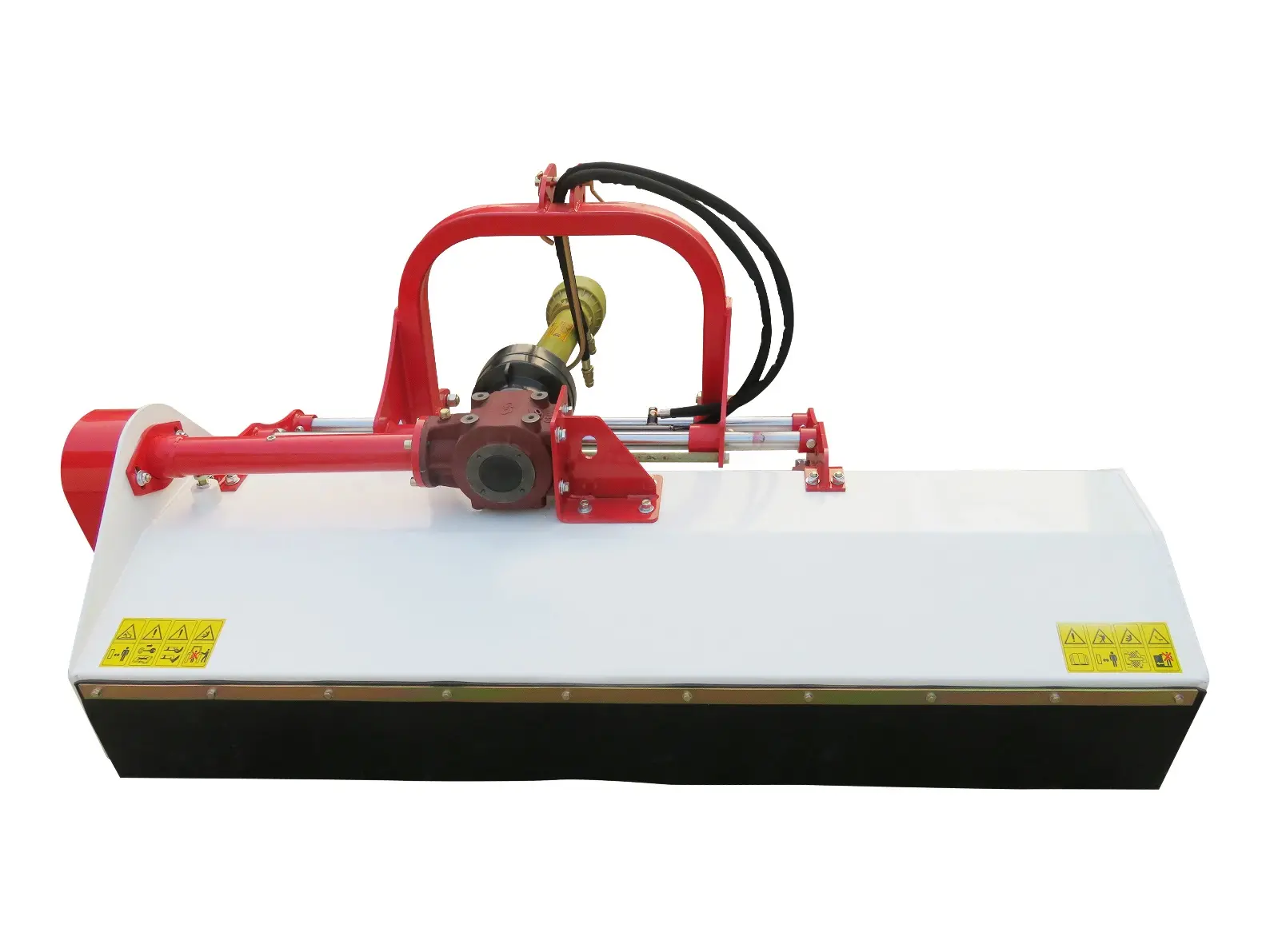

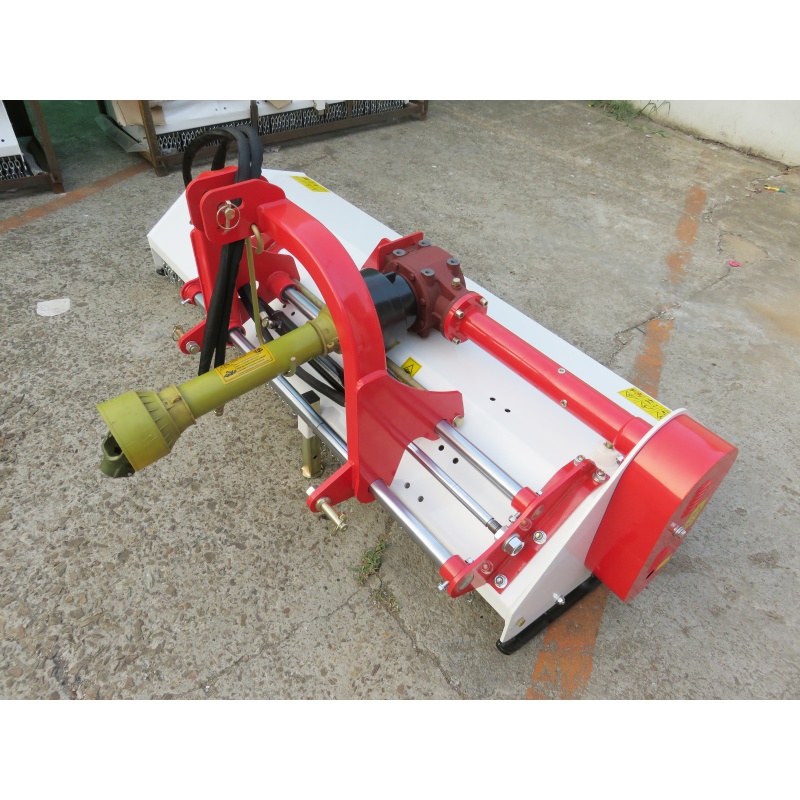

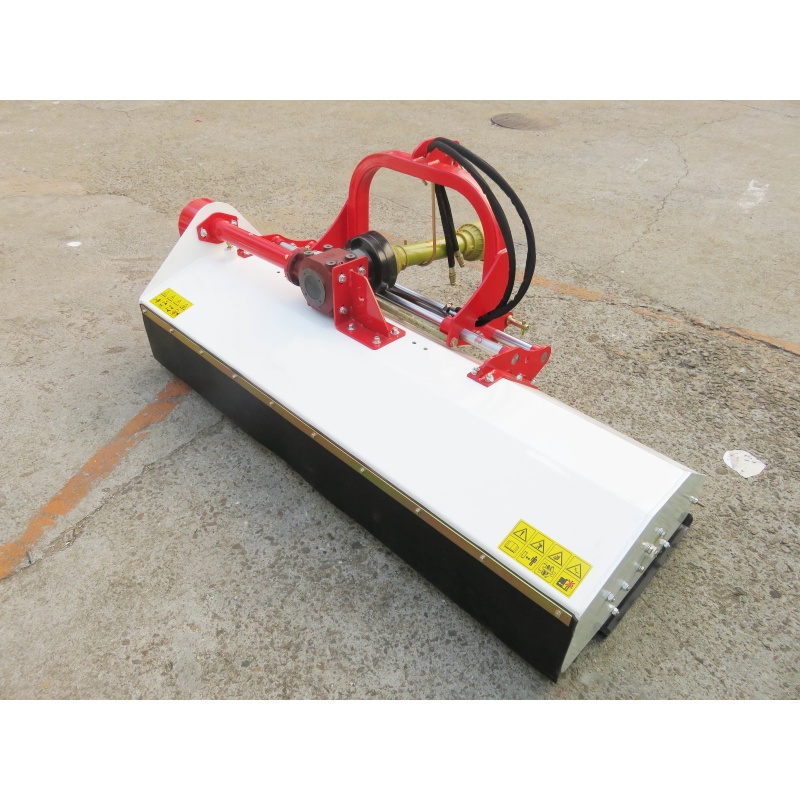

Details Images
Key attributes
Industry-specific attributes
brand name JUMA
Other attributes
| type | Flail mower |
| Warranty | 1 Year |
| Core Components | Gearbox |
| Place of Origin | Jiangsu, China |
| key selling points | Suitable for 30-50 HP tractors |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Gross weight | 350-450 kgs |
| Feature | Cutting grass |
| Customized service | Available |
| Sample service | Yes |
| MOQ | 2 Units |
| After-sales Service Provided | Online support |
| After Warranty Service | Online support |
| Local Service Location | None |
| Certification | CE |
Packaging and delivery
Selling Units:Single item
Single package size:150X80X62 cm
Single gross weight:350 kg
Supply Ability
300 Unit/Units per Month
Show less
Lead time
Quantity (units) 1 - 300 > 300
Lead time (days) 60 To be negotiated
Customization options
Customized packaging (Min. order: 2 units)
Graphic customization (Min. order: 2 units)
Customized logo (Min. order: 2 units)
Price
2-4 units:828
5-10 units:805
10+ units:780
