Hedge Trimmer AM80-140 Suppliers, Manufacturers

Product Description

1.Industrial Machinery/Agricultural Machinery & Equipment/ Forestry Machinery

2.Light Duty Tractor Trimmer Trimmer Atv Front

AM flail heads

ther recommendations for your business

(BELH BELM EFL EFM …. )

Basic Info

Model NO.AM

Specificatio CE

Origin Jiangsu Province,China(Mainland)

Transport Package ron Pallet

Trademark JUMA

Production Capacity 5000 PCS/Year

Product descriptions from the supplier

Description Parameters Details Image Reviews Supplier Attributes

Product Description

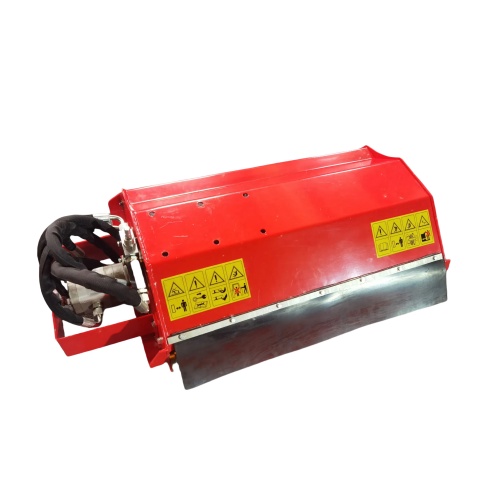

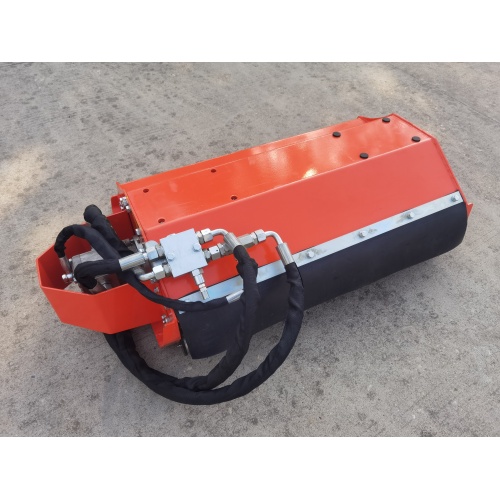

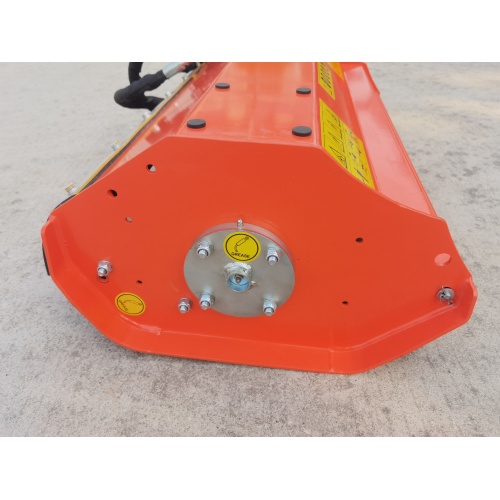

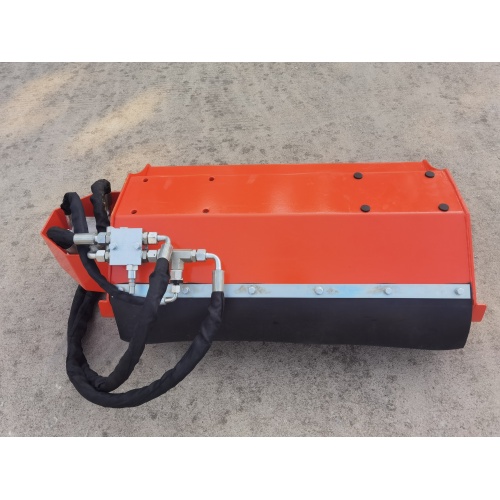

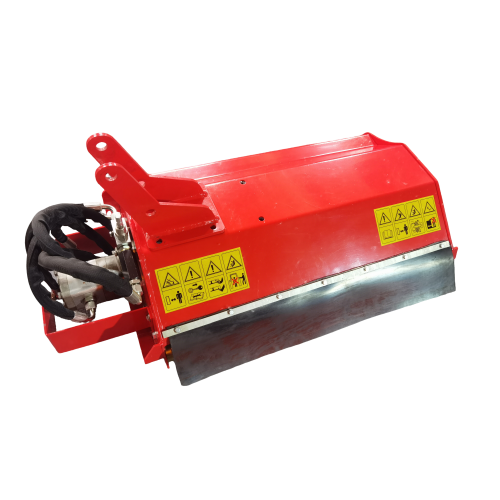

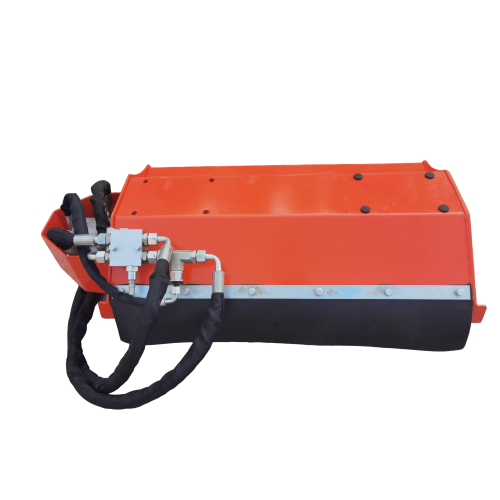

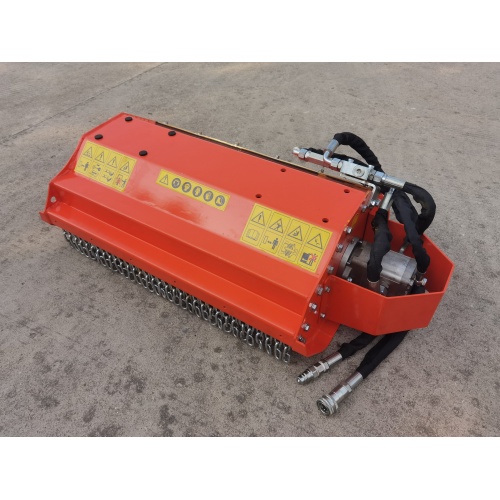

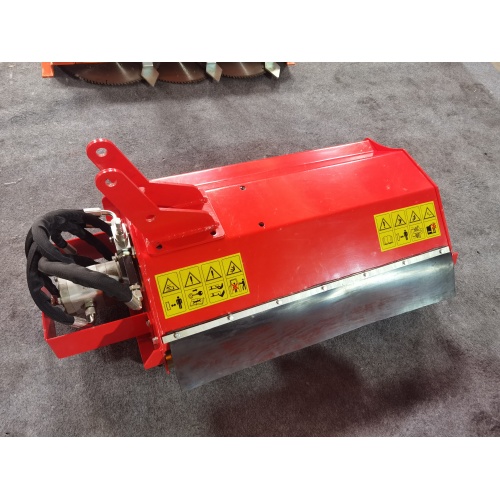

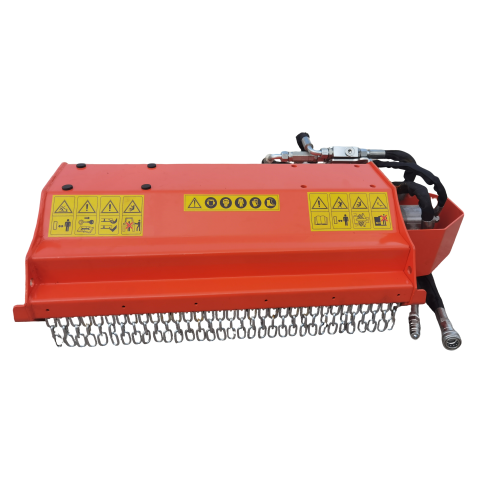

AM flail heads

1.Frame with internal and external reinforcements.

2.Self-leveling parallelogram device，mechanically lockable.

3.Pressure relief and anti-cavitation valve.

4.3 ways flow control valve-pressure compensated.

5.Hydraulic pipes and connections protected by spiral （1.3m）

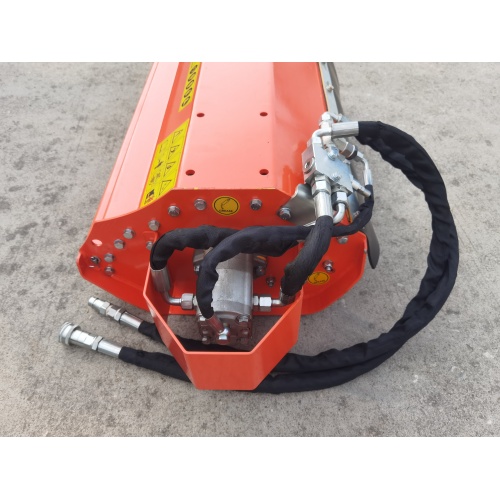

6.Hydraulic gear motor，up to 30 bar of back pressure on the discharge.

7.Direct drive.

8.Rear adjustable roller.

9.Front adjustable bonnet.

10.Protection with abrasion-proof rubberized front and rear protections.

Juma hydraulic drive mower is a construction machinery excavator attachment with independent intellectual property rights developed by Changzhou Mateng Machinery Co., Ltd. It can be used for cutting irrigation and weeding in the weed environment of gardens and shrubs. It is equipped with excavators of different tonnage and sizes. The machine can work in different ranges.flexible and convenient operation, stable and reliable performance, energy-saving and high-efficiency operation, and has strong adaptability to garden and shrub operations. It is the most ideal mowing machine.

Parameters

Item	Unit	design value
Item	Unit	AM80	AM100	AM120	AM140
Length x Width x Height	mm	1065×520×320	1265×520×320	1465×520×320	1665×520×320
Cutting width	mm	800	1000	1200	1400
Tool shaft diameter	mm	280	280	280	280

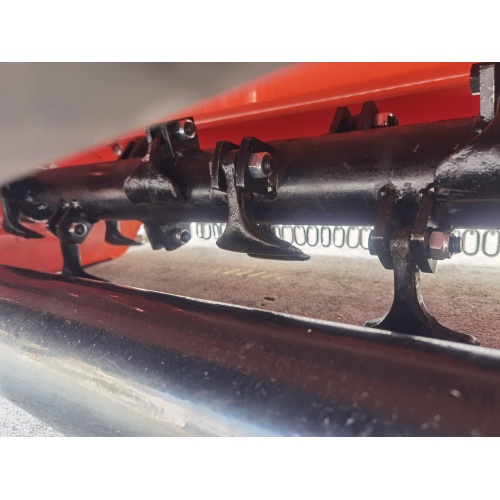

Hoe Blade quantity	pc	12	16	20	24
Y type blade + straight blade quantity	pc	24+12	32+16	40+20	48+24Total Weight
Total Weight	Kg	170	210	210	210
Speed control valve flow	L/min	27-38	30-40	35-45	35-45
Tool shaft speed	Rpm	2500-3500
Fixed work stress	Bar	200
Maximum allowable pressure of return oil	Bar	20
Hoe Blade Maximum Cutting Diameter	cm	4	4	4	4
Straight Y Combination Knife Maximum Cutting Diameter	cm	3	3	3	3
Roller diameter	mm	102	102	102	102
Adapt to the tonnage of the excavator	T	3.0-5.5	3.0-5.5	3.0-5.5	3.0-5.5

Details Images

Key attributes

Industry-specific attributes

brand name JUMA

Other attributes

type	Trimmer
Warranty	1 Year
Core Components	Gearbox
Place of Origin	Jiangsu, China
key selling points	Mini Excavator (1-10tons) Attachments
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Gross weight	100-200 kgs
Feature	Cutting grass
Customized service	Available
Sample service	Yes
MOQ	2 Units
After Warranty Service	Online support
After-sales Service Provided	Online support
Local Service Location	None
Certification	CE

Supply Ability

300 Unit/Units per Month

Show less

Lead time

Quantity (units) 1 - 300 > 300

Lead time (days) 45 To be negotiated

Customization options

Customized packaging (Min. order: 2units)

Graphic customization (Min. order: 2 units)

Customized logo (Min. order: 2 units)

Price

2-5 units:699

6-10 units:685

10+ units:652

Send Inquiry

For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

Products

New Products

Hedge Trimmer AM80-140

Send Inquiry

Product Description

Send Inquiry

Related Products

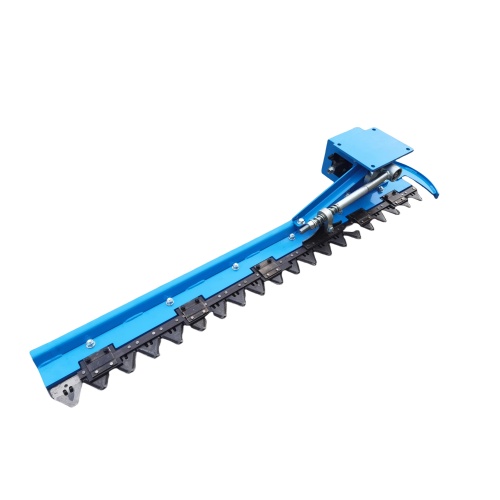

Hedge Trimmer HT 90-180
