Sliding Loader Attachments BMH120-180L

Used for crushing tree shrubs, branches, vegetation, exposed tree stumps, shrubs, and crop straw.



Send Inquiry

Product Description

Industrial Machinery/Agricultural Machinery & Equipment/Forestry Machinery

Forest land reclamation machine matched with sliding loader

This product is suitable for skid steer loaders and excavators, with a variable coverage operating width of up to 1.8 meters and a unique feature of being able to replace the entire drum gear instead of individual teeth.

BMA is suitable for clearing forest land, including the crushing and cleaning of vegetation, tree stumps, tree roots, and stones. The products are diverse and can be matched with small horsepower, medium horsepower, and high horsepower skid steer loaders. This series of products includes forest cleaning machines, stump crushers, forest rotary tillers, crushers, and multifunctional machines that can handle various working conditions.

450-770               L2L120-180cm

15-30cm               5-40cm

1.Industrial Machinery/Agricultural Machinery and Equipment/Forestry Machinery

2.Forest land reclamation machine matched with sliding loader

BMH-L  Forestry covering machine

ther recommendations for your business

(BELH  BELM   EFL   EFM   ….  )



Basic Info

Model NO.BMH-L

Specificatio CE

Origin Jiangsu Province,China(Mainland)

Transport Package ron Pallet

Trademark  JUMA

Production Capacity 5000 PCS/Year



Product descriptions from the supplier

Description    Parameters   Details Image     Reviews     Supplier    Attributes

Product Description

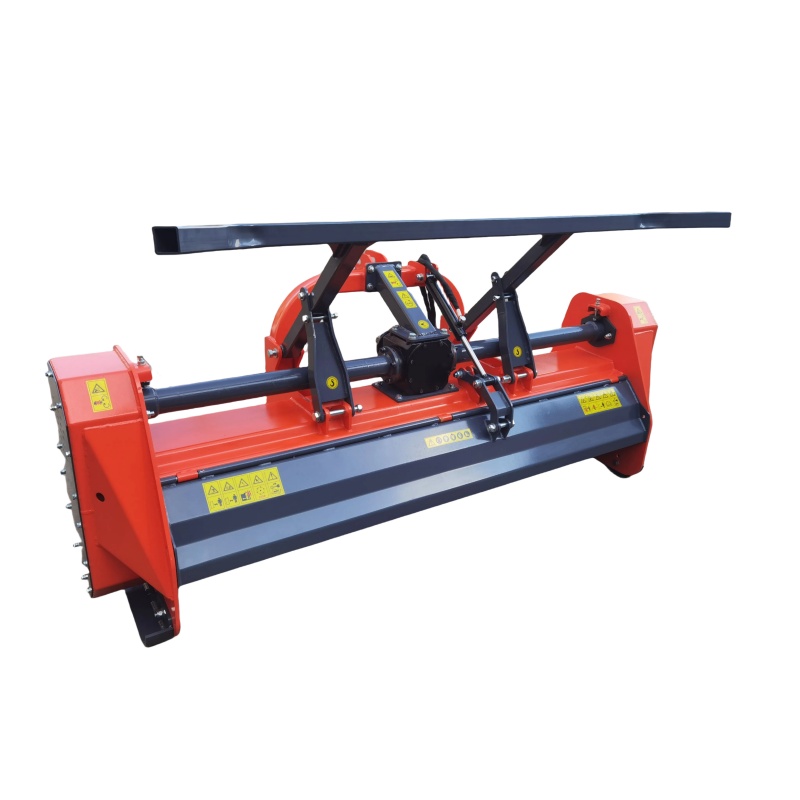

BMH Forestry covering machine

1. Heavy duty steel structure with selectable operating widths of 1.2m and 1.8m

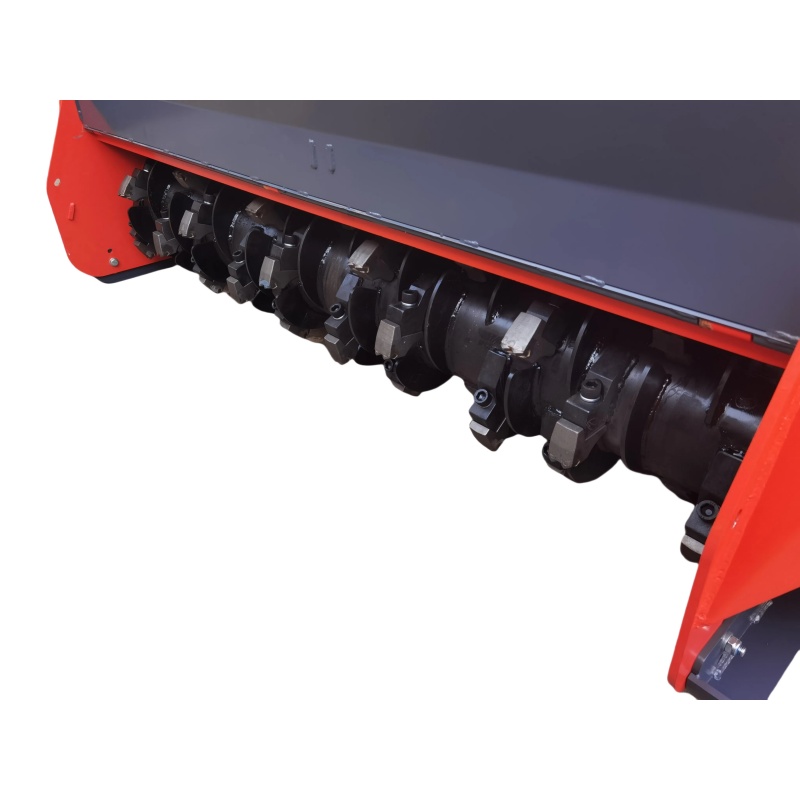

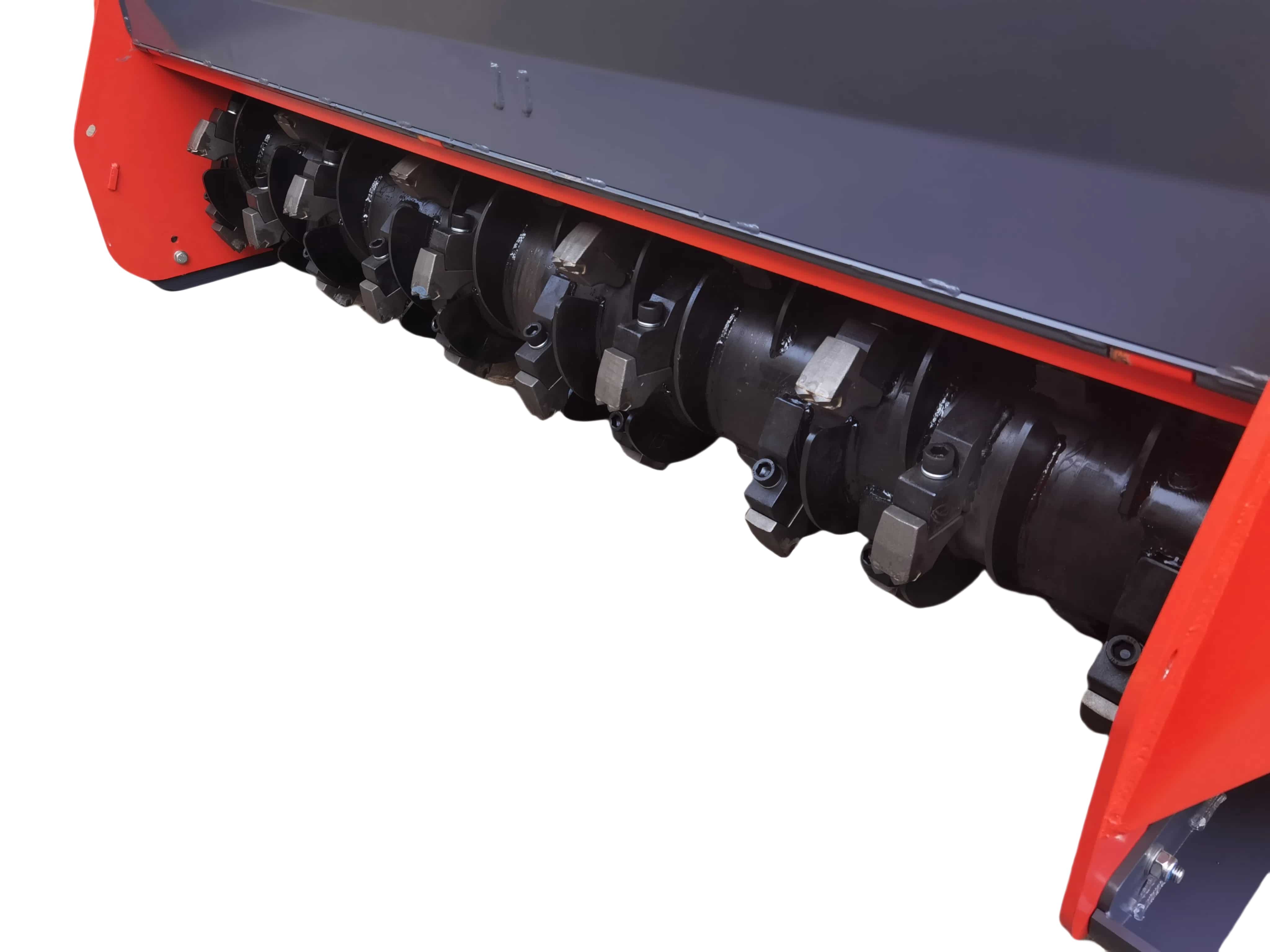

2. Removable toothed cutting drum - convenient for on-site replacement

3. Fixed teeth and swinging teeth are available for selection and optimization of cutting function to prevent drum stall

4. Large bearings and five belt system, hinged debris cover for easy maintenance

5. Matching skid steer loaders and excavators is suitable for clearing forest land, including crushing and cleaning vegetation, tree stumps, tree roots, and stones.

Parameters

Used for crushing tree shrubs, branches, vegetation, exposed tree stumps, shrubs, and crop straw.

Model BMH120L BMH140L BMH160L BMH180L
Skid steer loader450-750 450 550 650 750
excavators(t) 5-10 7-10 10-15 15-20
Oil pressure range (Bar) 160-200 180-220 220-240 230-250
Oil volume range (lpm) 60-70 70-90 90-120 120-150
Working width (mm) 1200 1400 1600 1800
Total width (mm) 1501 1720 1920 2120
Weight (kg) 531 650 732 858
Rotor diameter (mm) 380 440 440 440
No. Quantity of alloy knives/black steel knives 28 32 36 40
No. of hammer blades 20 24 28 32
Weight(kg) 411 545 750 862
Max shredding diameter (mm) 200 250 300 300
Maximum working depth (mm) 100 100 150 150
Tool shaft speed (Rpm) 1800-2500
Belt B-section
Belt Adjustment Manual Mechanical Tension

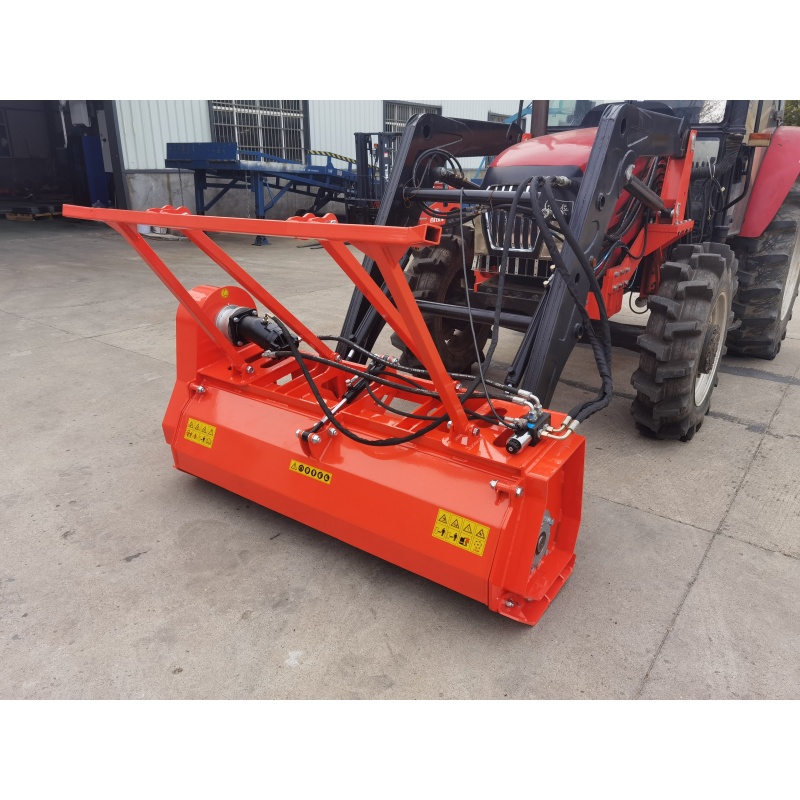

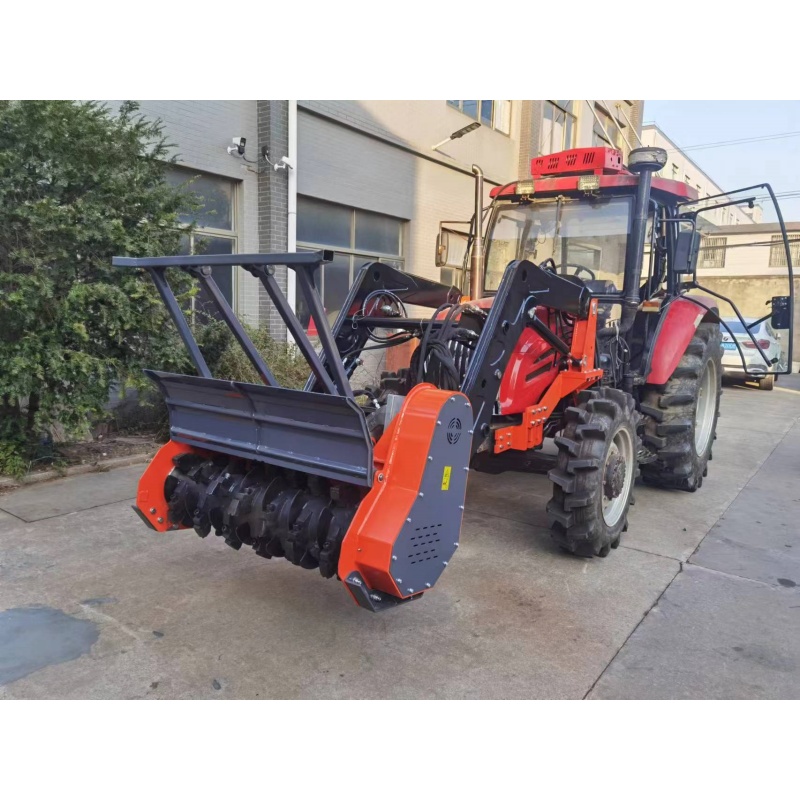

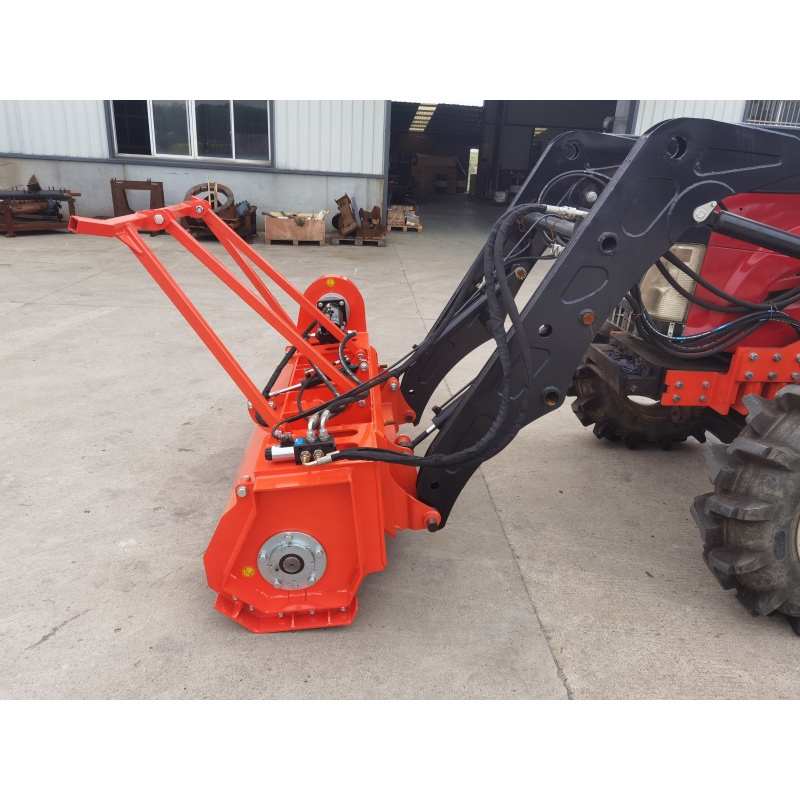

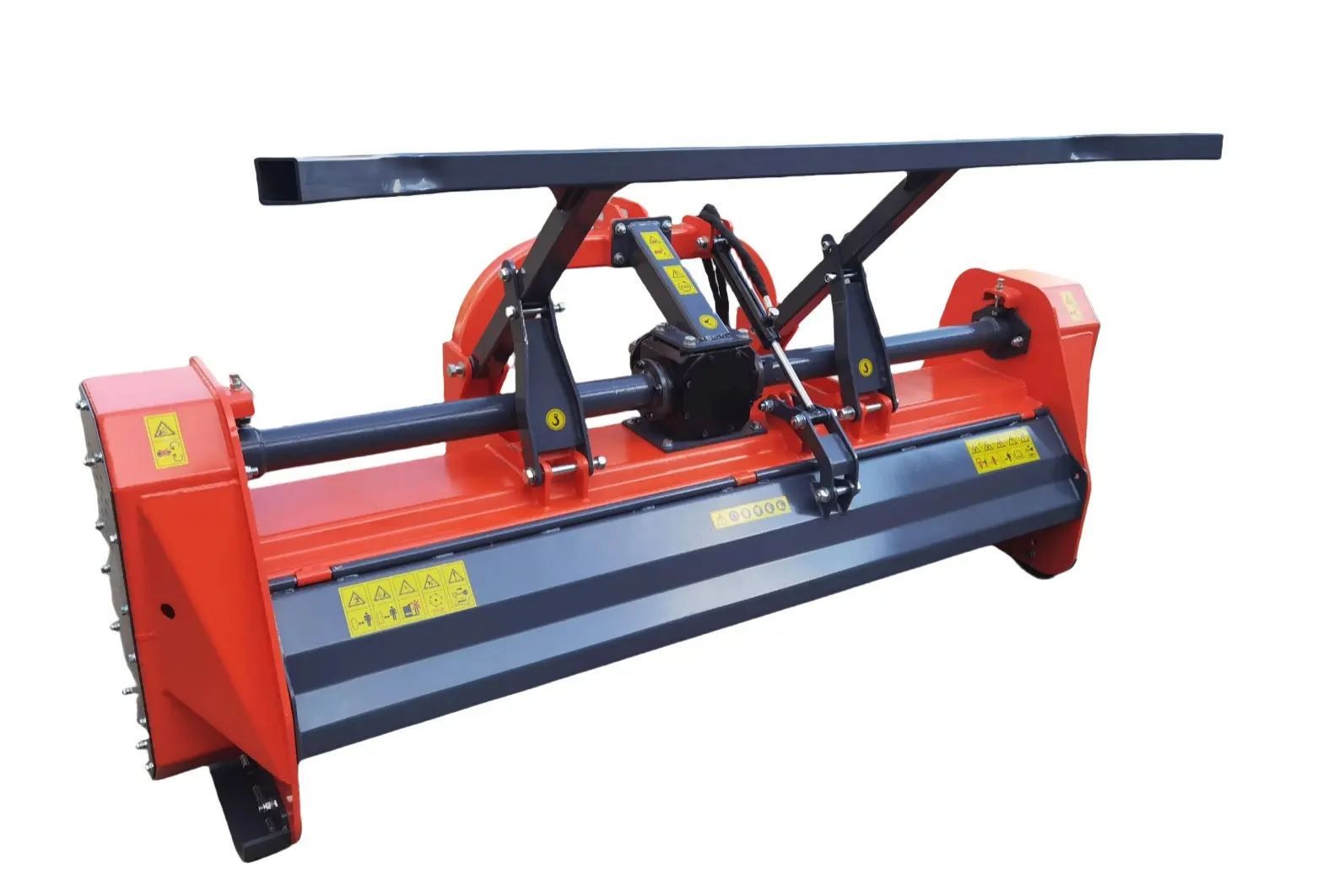

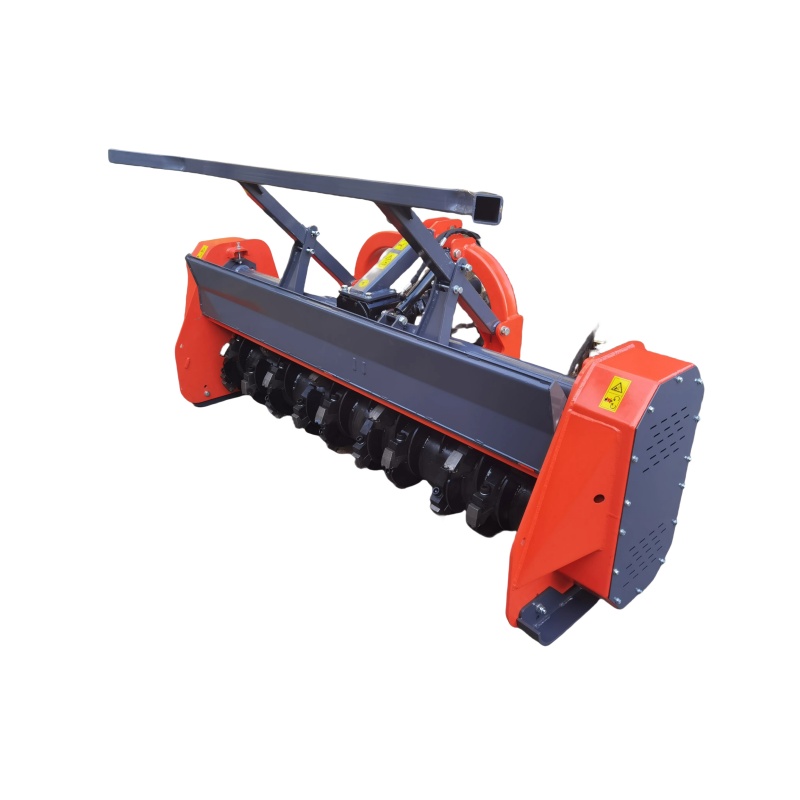

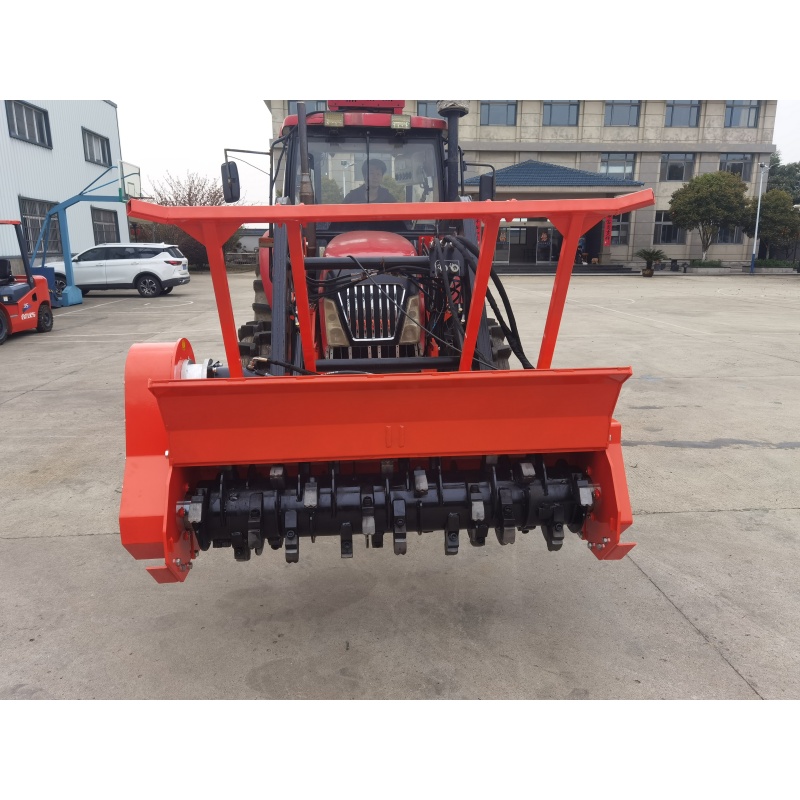

Details Images



Key attributes

Industry-specific attributes

brand name JUMA

Other attributes

type Forestry covering machine
Warranty 1 Year
Core Components Gearbox
Place of Origin Jiangsu, China
key selling points Sliding loader attachments
Video outgoing-inspection Provided
Machinery Test Report Provided
Gross weight 530-860kg
Feature Discover the forestry mulchers
Customized service Available
Sample service Yes
MOQ 2 Units
After-sales Service Provided Online support
After Warranty Service Online support
Local Service Location None
Certification CE



Supply Ability

300 Unit/Units per Month



Show less

Lead time

Quantity (units) 1 - 300 > 300

Lead time (days) 45 To be negotiated



Customization options

Customized packaging (Min. order: 2 units)

Graphic customization (Min. order: 2 units)

Customized logo (Min. order: 2 units)



Price

2-5 units:2995

6-10 units:2980

10+ units:2950
