Sliding Loader Attachments BXH 42-52 Manufacturers, Suppliers

Product Description

1.Industrial Machinery/Agricultural Machinery & Equipment/Forestry Machinery

2.Forest Machinery Wood Chipper for Skid Steer Loader

BXH Sliding wood crusher

ther recommendations for your business

(BELH BELM EFL EFM …. )

Basic Info

Model NO.BXH

Specificatio CE

Origin Jiangsu Province,China(Mainland)

Transport Package ron Pallet

Trademark JUMA

Production Capacity 5000 PCS/Year

Product descriptions from the supplier

Description Parameters Details Image Reviews Supplier Attributes

Product Description

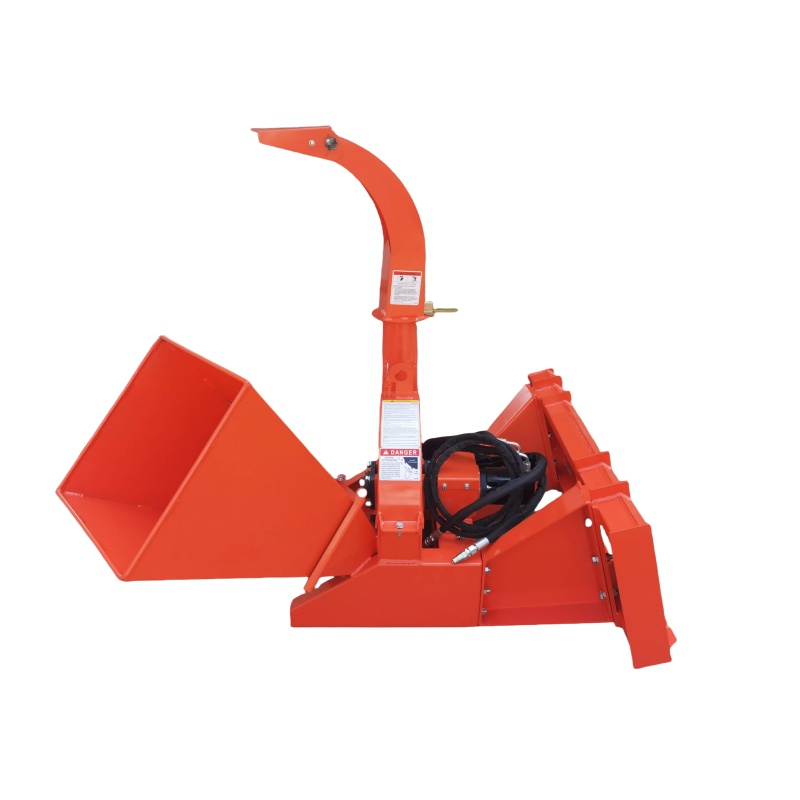

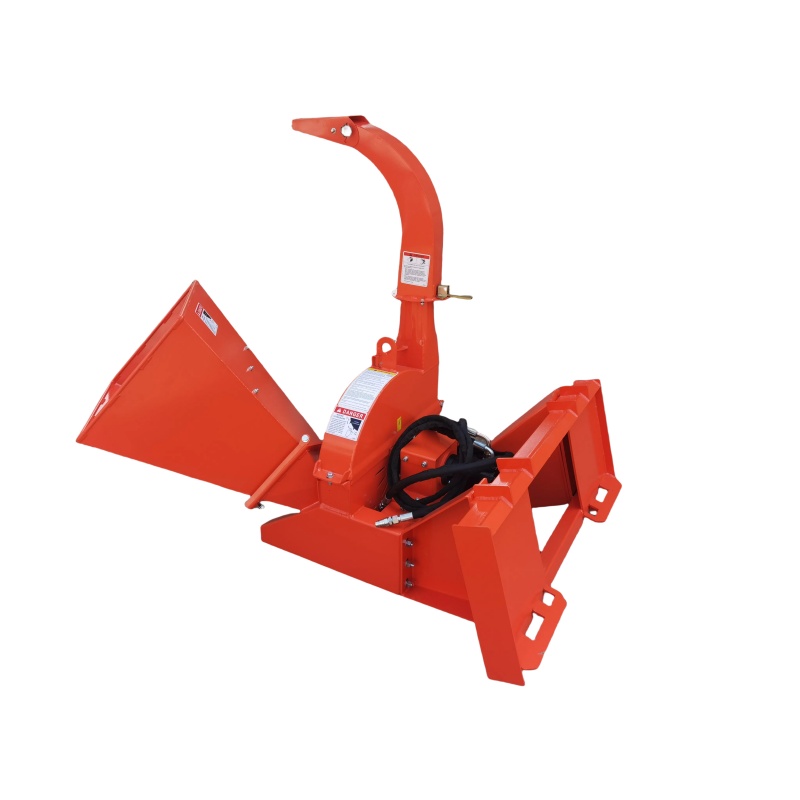

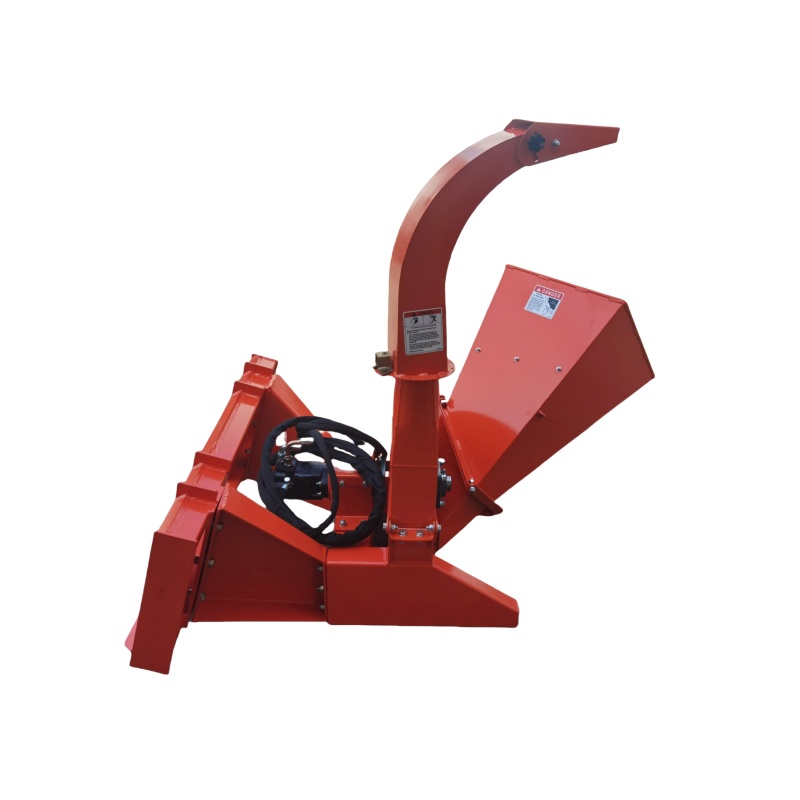

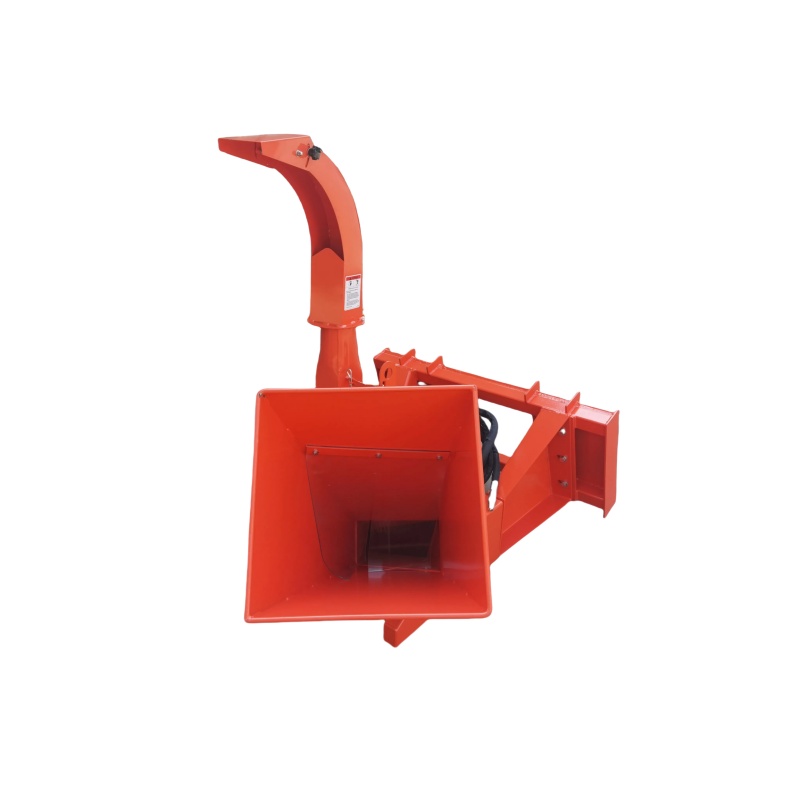

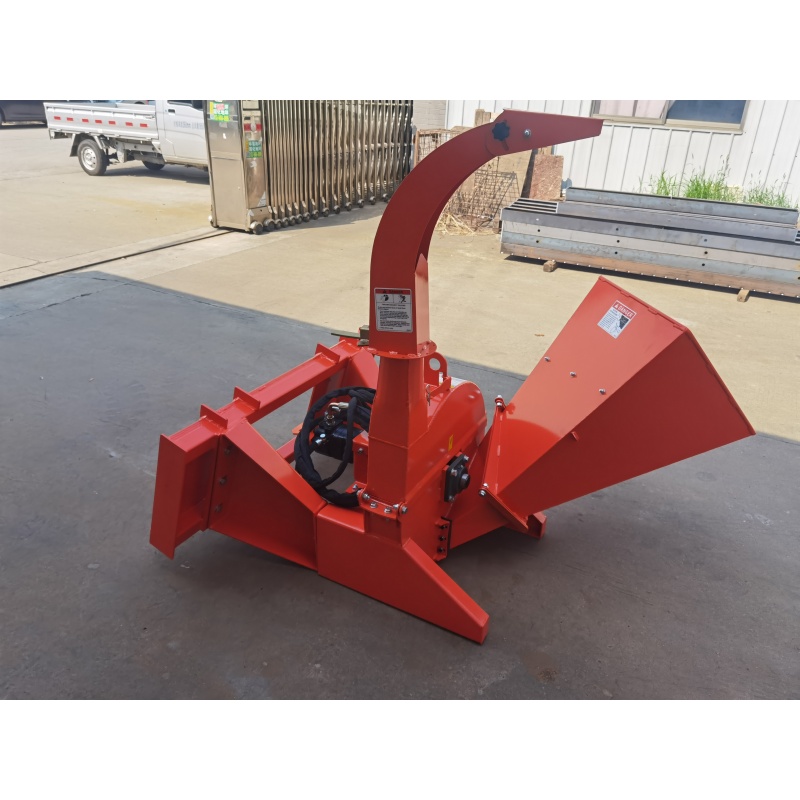

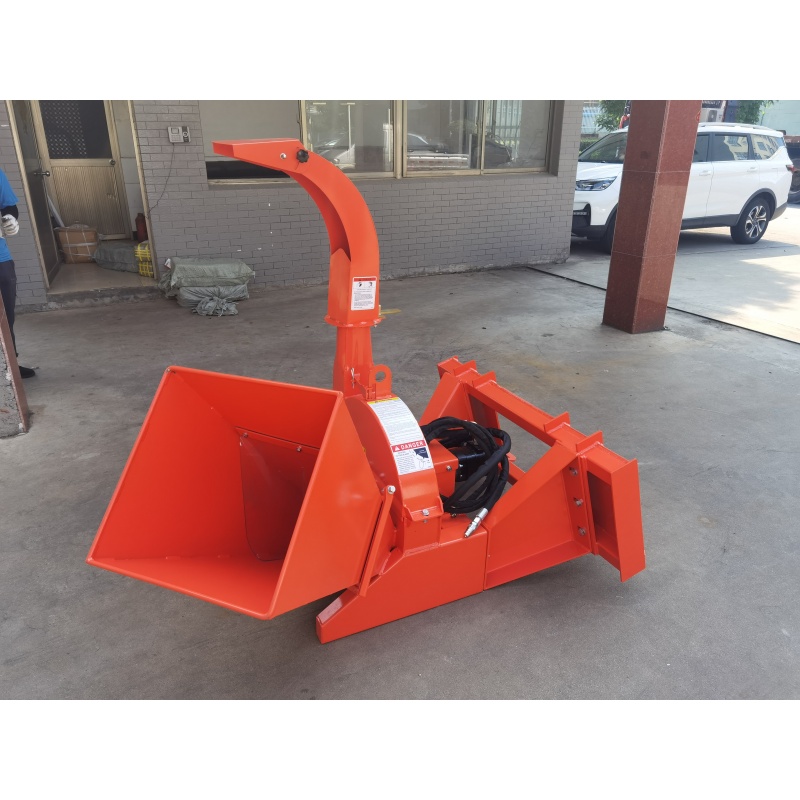

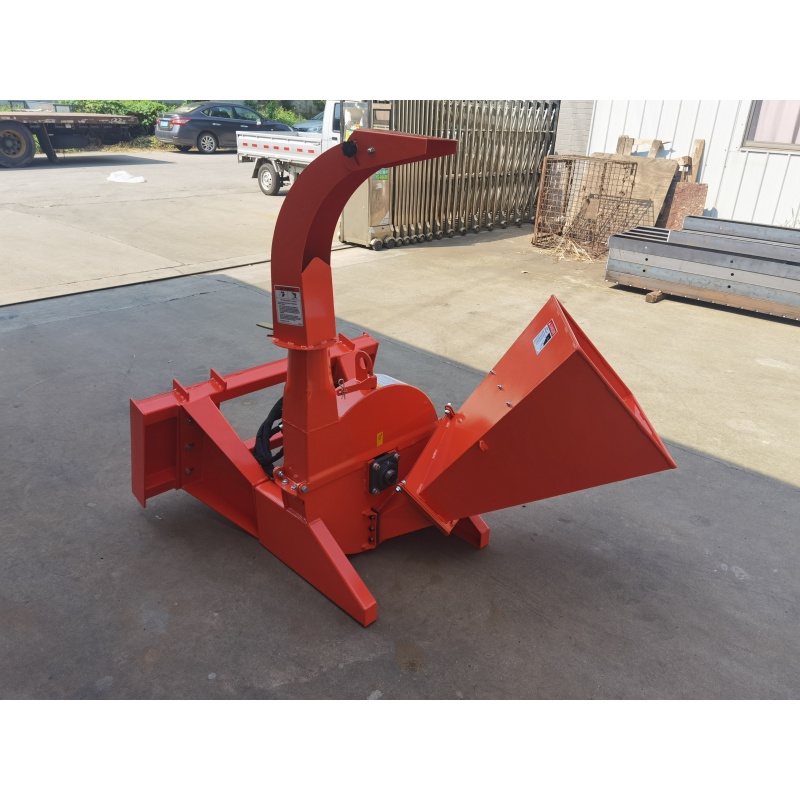

BXH Sliding wood crusher

This easy to use attachment features a 20" x 20" self-feeding hopper opening to handle large, awkward size branches up to 4" in diameter, and angles brush against the blades as it pulls material into the chipper.

The 25" rotor features 4 hardened-steel reversible chipping blades places at 90 degrees to each other to cut, shear and shred the wood as it moves through the machine.

One of the great things about owning skid steer wood chippers is that you can reach many areas that you may never be able to reach with a regular chipper

Parameters

MDOEL	BXH42	BXH42R
Chipper Capacity	100mm	4"
Chipper Housing Opening	100x254mm	4"x10"
No. of Knives	4	4
Rotor Size	635 mm	25"
Feeding System	Self Feed/Pinch &Pull	Self Feed/Pinch &Pull
Size with Hopper Folded	1016Lx1067Wx1524H(mm)	40'"Lx42'"Wx60'"H
Hopper Opening	508x508 mm	20'"x20'"
Mounting System	3 Point Hitch	Attach to skidder or front loader
Discharge Hood Rotation	360°	360°
Discharge Hood Height	1524 mm	60"
Structure Weight	195kg	430 LBS
Pump oil flow(L/min)	60L/min	60L/min
Max Pressure	20MPa	20MPa
Min. Operation Flow	14GPM	14GPM
Max Capacity Flow	24GPM(4"dia)	24GPM(4"dia)
Attach type	Tractor/Skid steer Universal	Tractor/Skid steer Universal
Flywheel	25"Diameter,80lbs.-1/2"Thick	25"Diameter,80Ibs.-1/2"Thick
	w/extractor-wings	w/extractor-wings
Bed Blades	1 reversible	1 reversible
Drive	Direct	Direct
Hitch Type	Standard Cat I	Standard Cat I

Details Images

Key attributes

Industry-specific attributes

type Wood Chipper

power type Gasoline

Other attributes

place of origin	iangsu, China
weight	240kgs
warranty	1 year
core components	motor, Engine, Rotor
use	chip wood
brand name	JUMA
dimension(lwh)	1.41.52.1m
key selling points	Hydraulic wood chipper
machinery test report	Provided
video outgoing-inspection	Provided
Product name	wood chipper
Feature	Skid steer attachment
Color	As required
Wood chips size	4 inch
