Sliding Loader Attachments REH360

To operate, attach to your tractor, raise up stump grinder so it clears the top of the stump, back up your tractor and lower the blade behind the stump, start the grinding wheel, and drive the tractor forward to take a cut, then back up the tractor, lower the blade, drive forward to take another cut.



Send Inquiry

Product Description

1.Industrial Machinery/Agricultural Machinery & Equipment/Forestry Machinery

2.Sliding loader, tree stump grinder

REH tree stump grinder

ther recommendations for your business

(BELH  BELM   EFL   EFM   ….  )



Basic Info

Model NO.REH

Specificatio CE

Origin Jiangsu Province,China(Mainland)

Transport Package ron Pallet

Trademark  JUMA

Production Capacity 5000 PCS/Year



Product descriptions from the supplier

Description    Parameters   Details Image     Reviews     Supplier    Attributes

Product Description

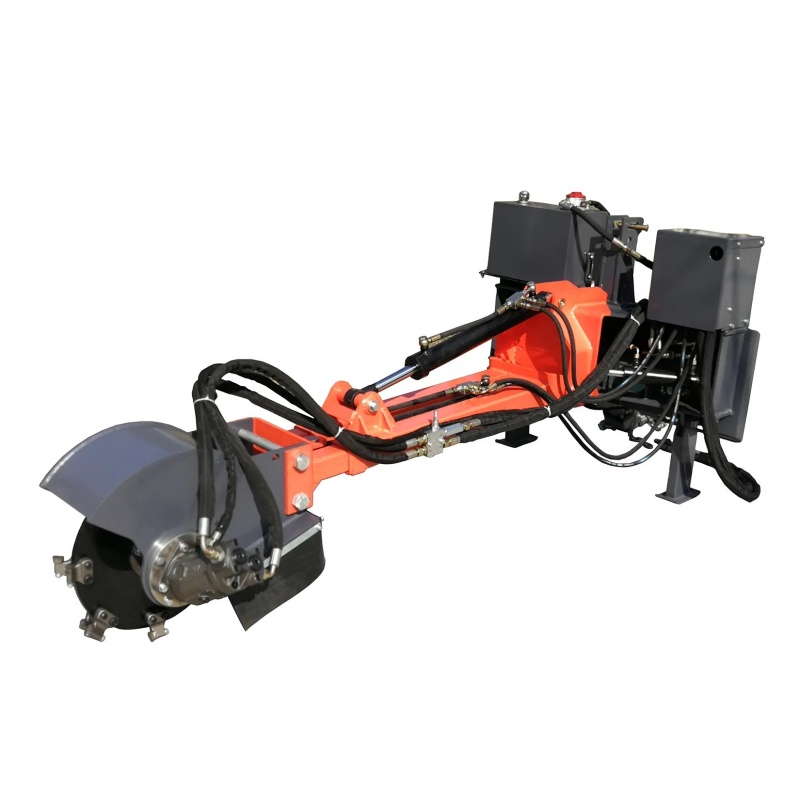

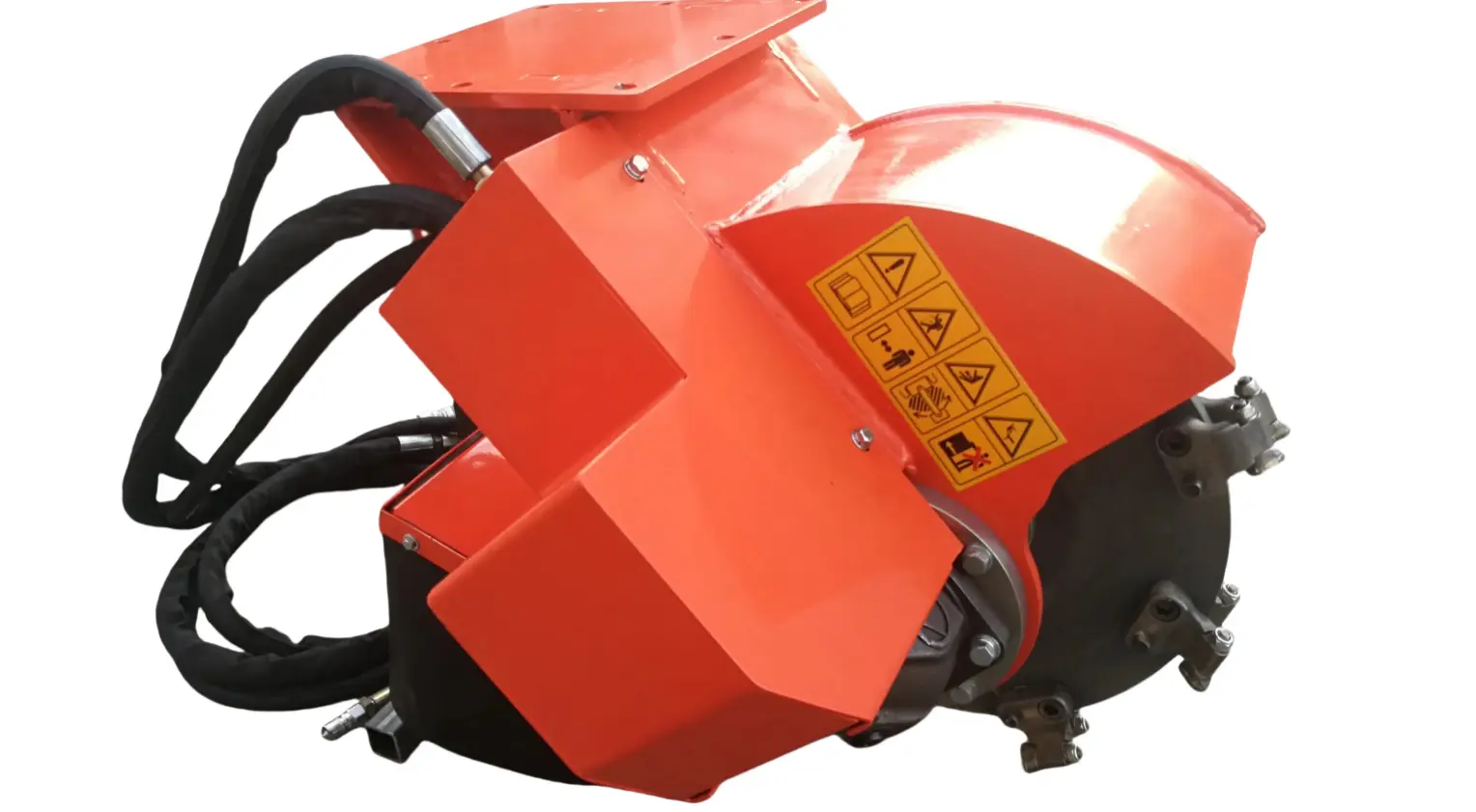

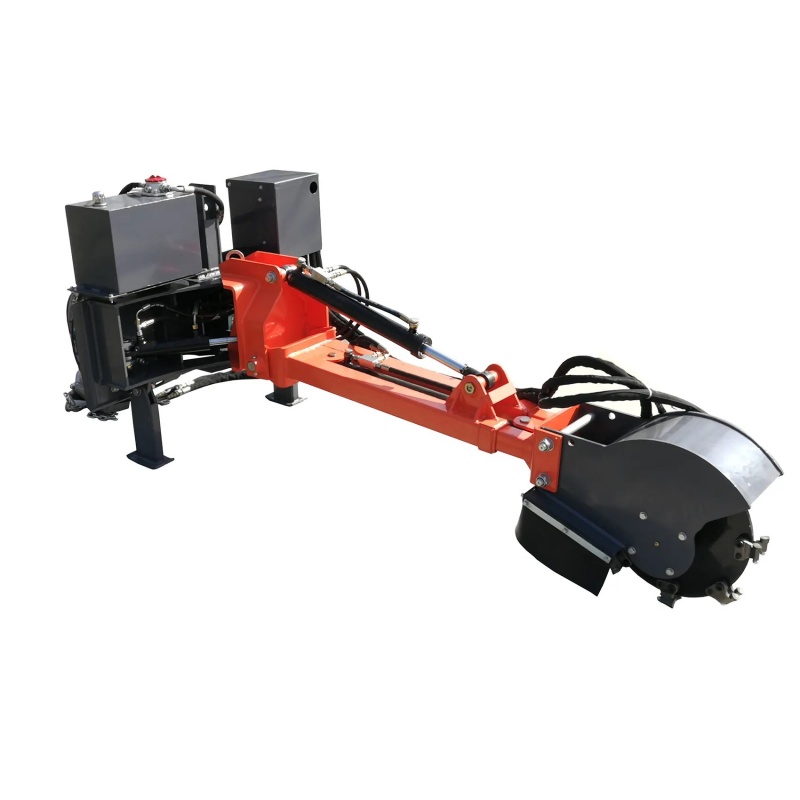

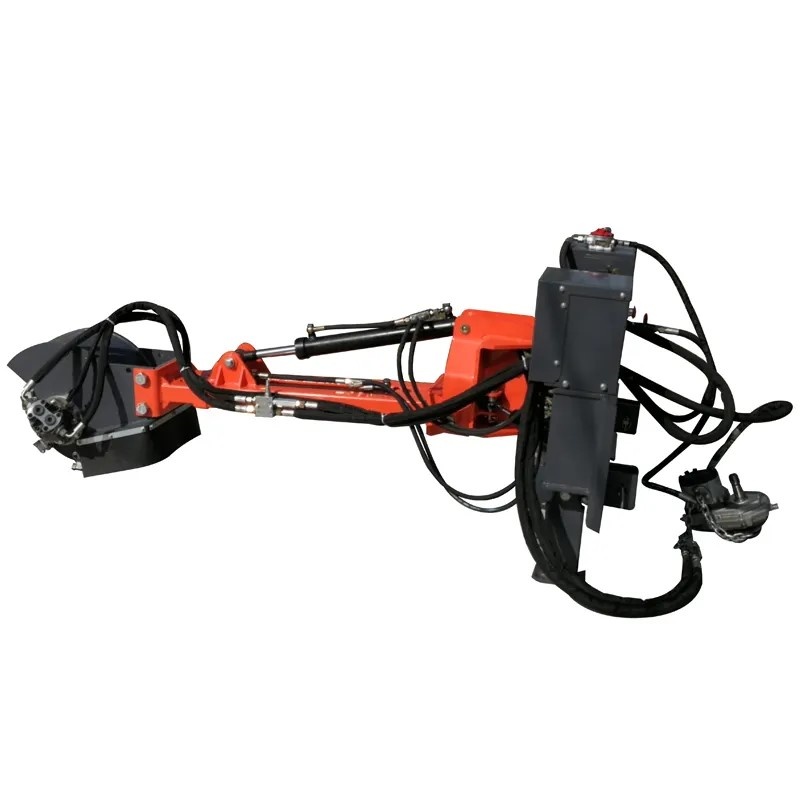

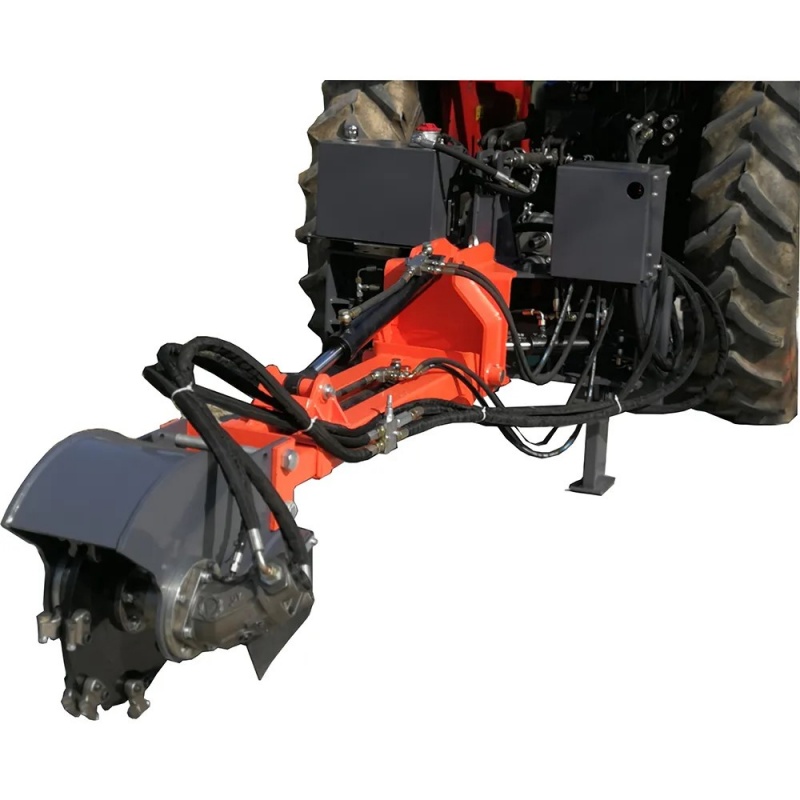

REH tree stump grinder

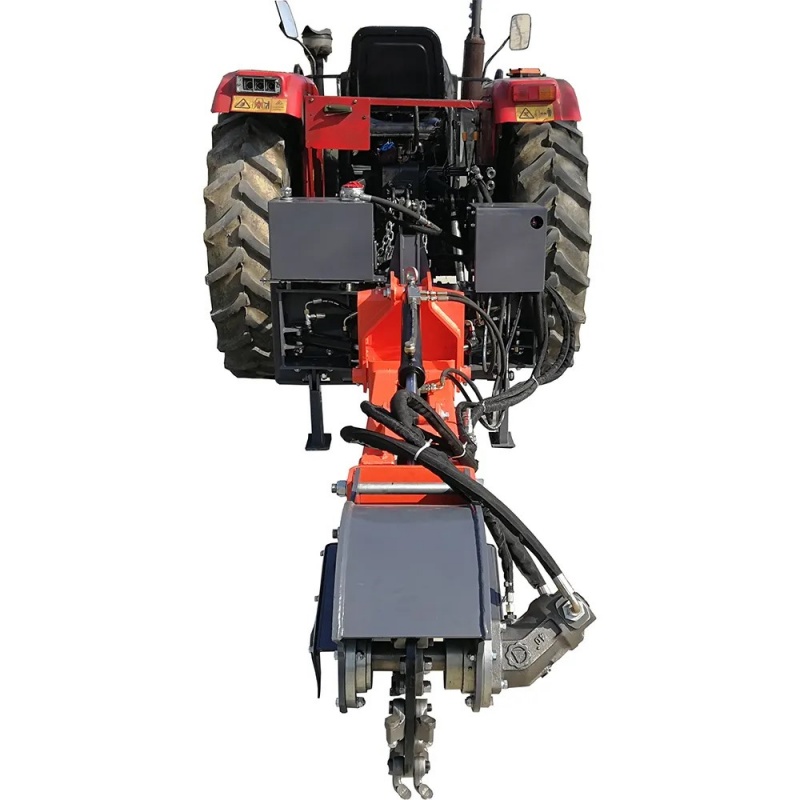

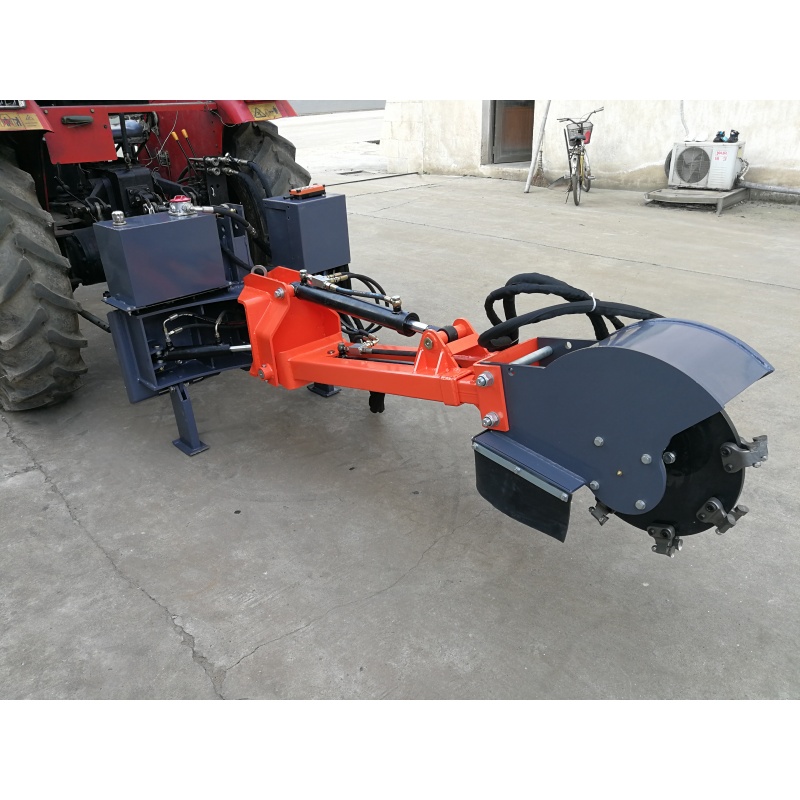

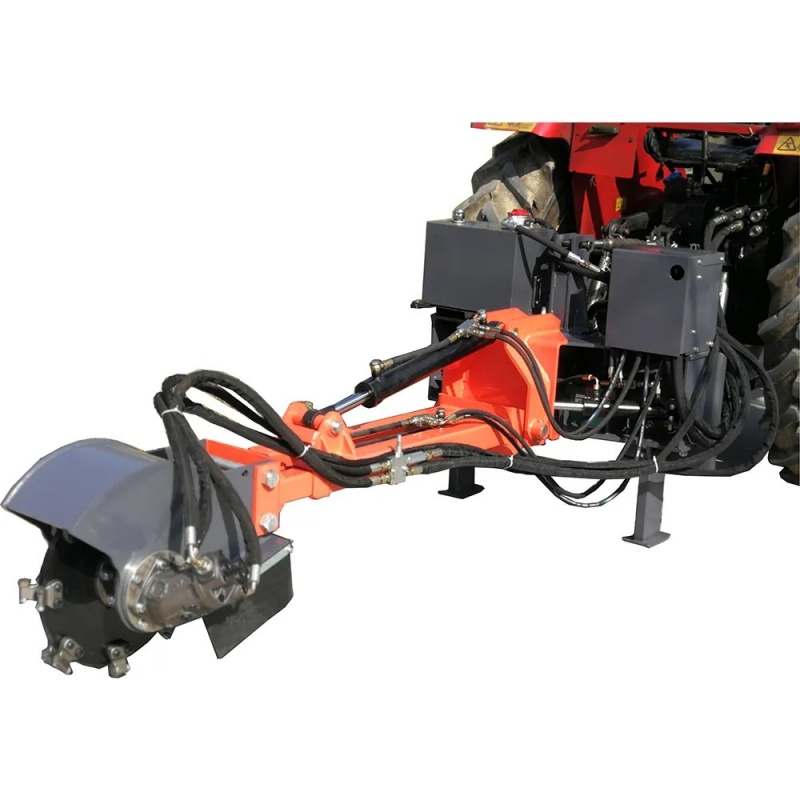

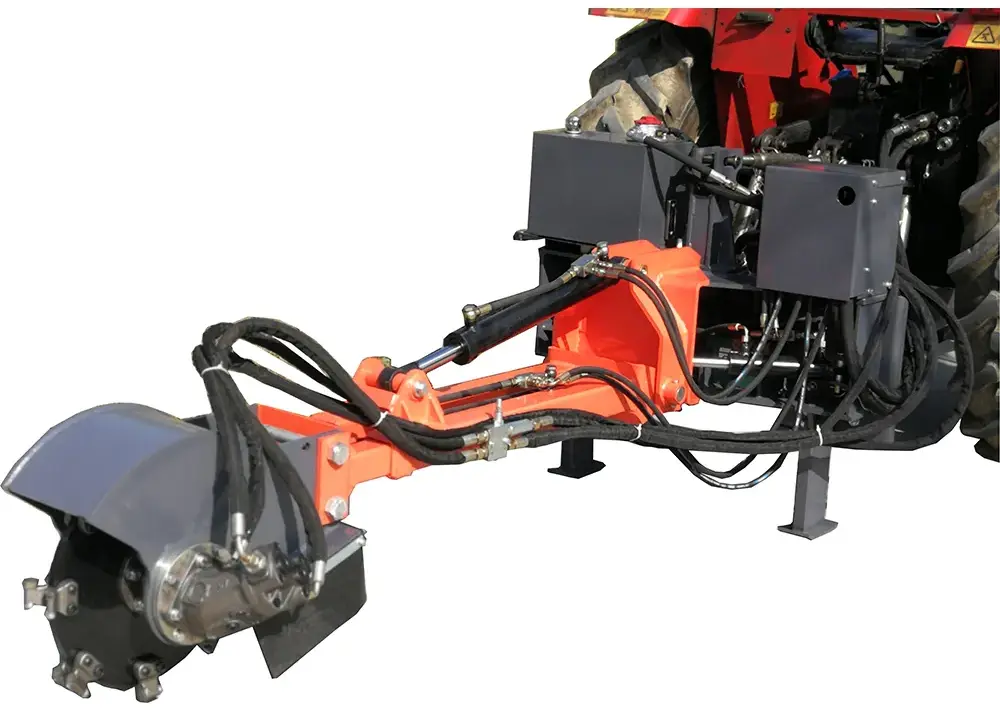

Tractor PTO powered /Skid steer loader stump Grinder

To operate, attach to your tractor, raise up stump grinder so it clears the top of the stump, back up your tractor and lower the blade behind the stump, start the grinding wheel, and drive the tractor forward to take a cut, then back up the tractor, lower the blade, drive forward to take another cut.

Parameters

Specification REH360 REH470
Length 2150mm 2250mm
Width 1350mm 1350mm
Height 820mm 820mm
Wheel Diameter 360mm 470mm
Cutting Diameter 545mm 545mm
Flow Requirements 18-25 GPM 18-25 GPM
Cutting Depth 160mm 190mm
Cutting height 300mm(12" )above ground, 300mm(12" )above ground,
  1100mm(43") below ground 1100mm(43") below ground
Cutting wheel Diameter 470mm(18.5") 470mm(18.5")
Wheel Speed 1500-2000 RPM 1500-2000 RPM
Boom swing range +/– 22º +/– 22º
Boom up/down angle 15º /27º 15º /27º



Details Images

Key attributes

Industry-specific attributes

type stump grinder

power type pto

Other attributes

place of origin Iangsu China
weight 524
warranty 1 Year
core components Bearing,motor, Pump, Engine
use dig stump
brand name JUMA
dimension(l*w*h) 1850x1200x950mm
key selling points remote control
machinery test report Not Available
video outgoing-inspection Provided
Model SG18TM
Power Tractor
Gearbox ratio 01:03.8
Hydraulic tank capacity 25L
Cutting height 300mm(12" )above ground/1100mm(43") belowground
Cutting wheel Diameter 470mm(18.5")
Cutting wheel Speed 745 to 2000 rpm
Boom swing range 22
Overall Length 94"(2400mm)
Number of Teeth 16



Packaging and delivery

Selling Units:Single item

Single package size:160x140x82 cm

Single gross weight:450.000 kg



Supply Ability

300 Unit/Units per Month



Show less

Lead time

Quantity (units) 1 - 300 > 300

Lead time (days) 45 To be negotiated



Customization options

Customized packaging (Min. order: 2 units)

Graphic customization (Min. order: 2 units)

Customized logo (Min. order: 2 units)



Price

2-5 units:1899

6-10 units:1850

10+ units:1800
