Wood Chipper BMH 120-180

Product Description

Industrial Machinery/Agricultural Machinery & Equipment/Other Farm Machines

Land clearing PTO driven fixtures

The PTO driven equipment manufactured by JUMA is suitable for forest clearing, including the crushing and clearing of vegetation, tree stumps, roots and stones. A wide range of products can be used to match small horsepower, medium horsepower and large horsepower tractors. The series of products include woodland cleaning machine, stump shredder, woodland rototiller, gravel crusher and multi-functional machine that can handle various working conditions.

50-100 hp	L120-180cm

diameter 100-150cm	5-40cm

1.Industrial Machinery/Agricultural Machinery and Equipment/Forestry Machinery

2.PTO driven forestry mulching machine suitable for tractors with 50 to 100 horsepower

BMH Forestry covering machine

ther recommendations for your business

(BELH BELM EFL EFM …. )

Basic Info

Model NO. BMH

Specificatio CE

Origin Jiangsu Province,China(Mainland)

Transport Package Iron Pallet

Trademark JUMA

Production Capacity 5000 PCS/Year

Product descriptions from the supplier

Description Parameters Details Image Reviews Supplier Attributes

Product Description

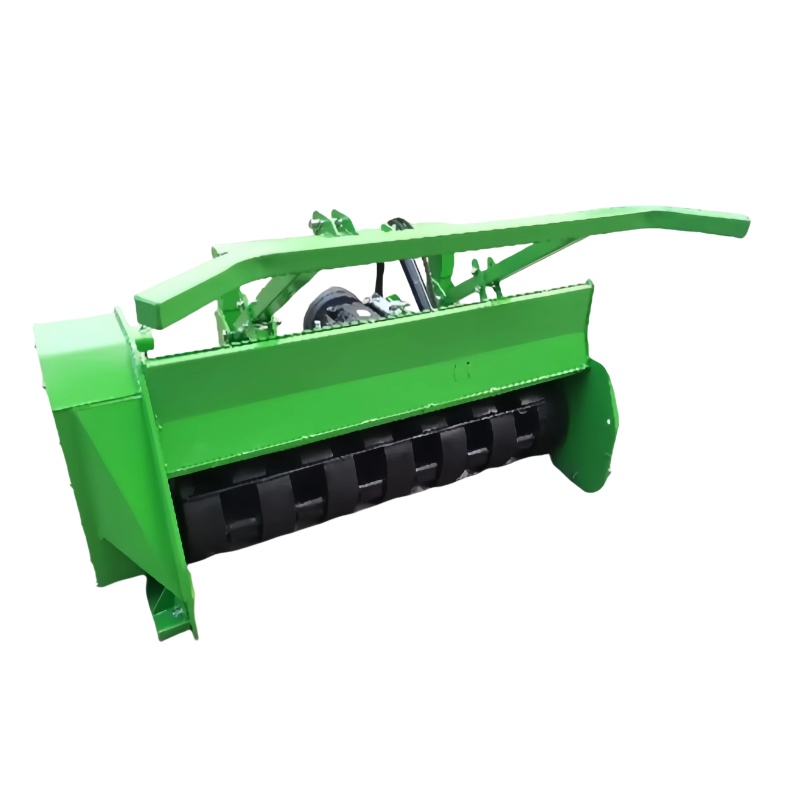

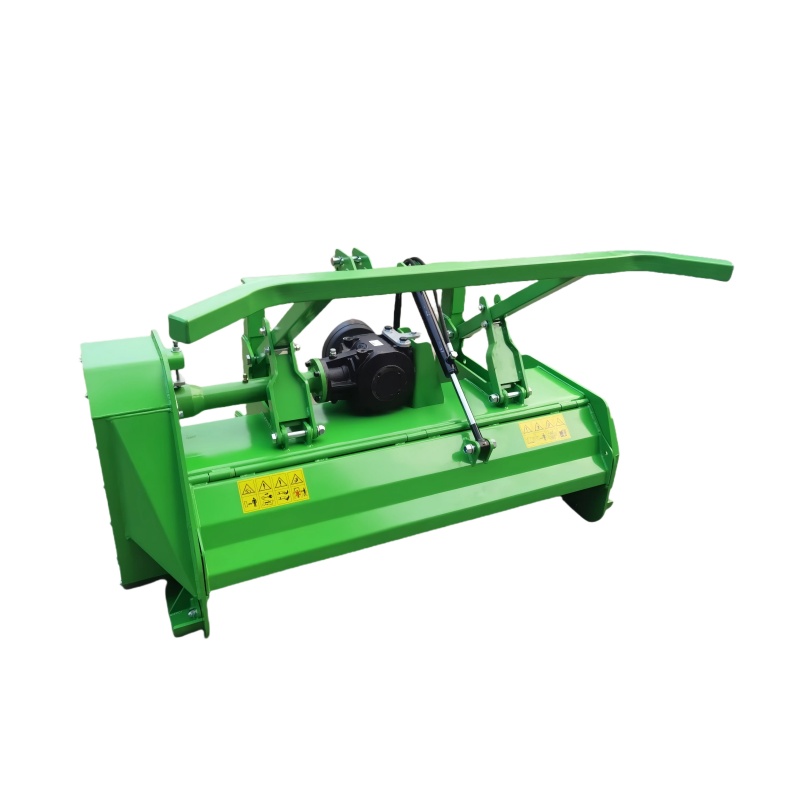

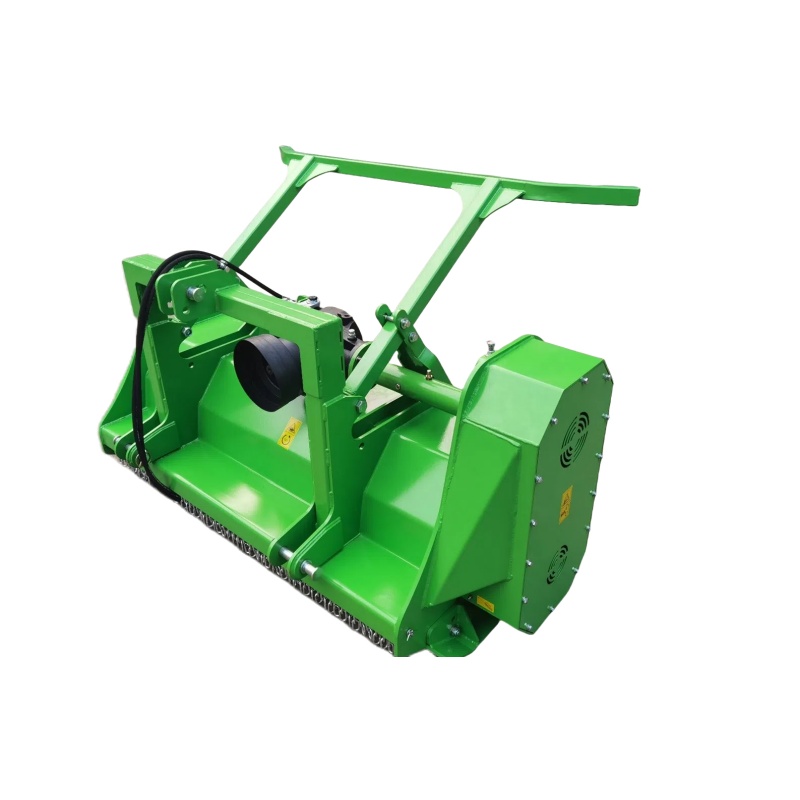

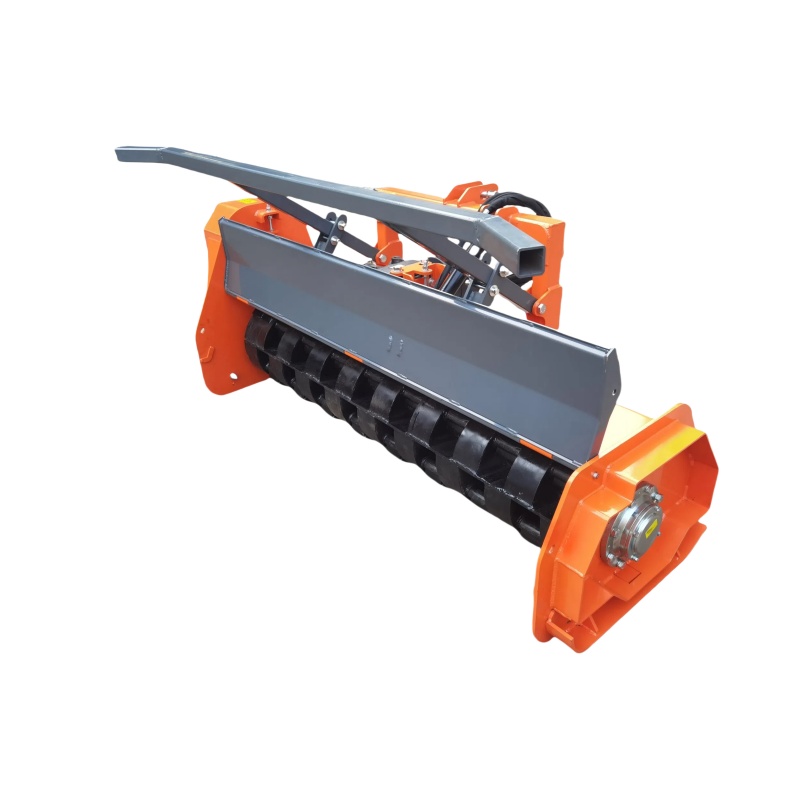

BMA-L Forestry covering machine

1.Forestry mulchers for low, medium, high and extremely high horsepower tractors for mulching wood, trees, shrubs, stumps and roots up to requirements for a 50 cm in diameter.

2.This product is suitable for 25-100HP tractors. The variable cover machine can operate with a width of up to 1.8 meters and has a unique function of replacing the entire drum tooth disc instead of a single tooth, thus saving a lot of time in this process.

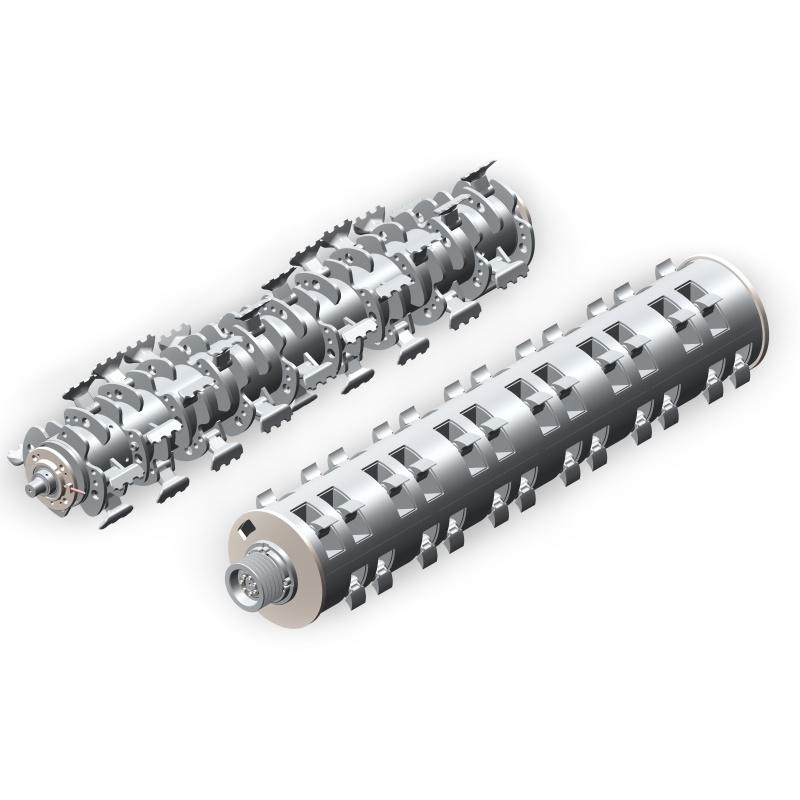

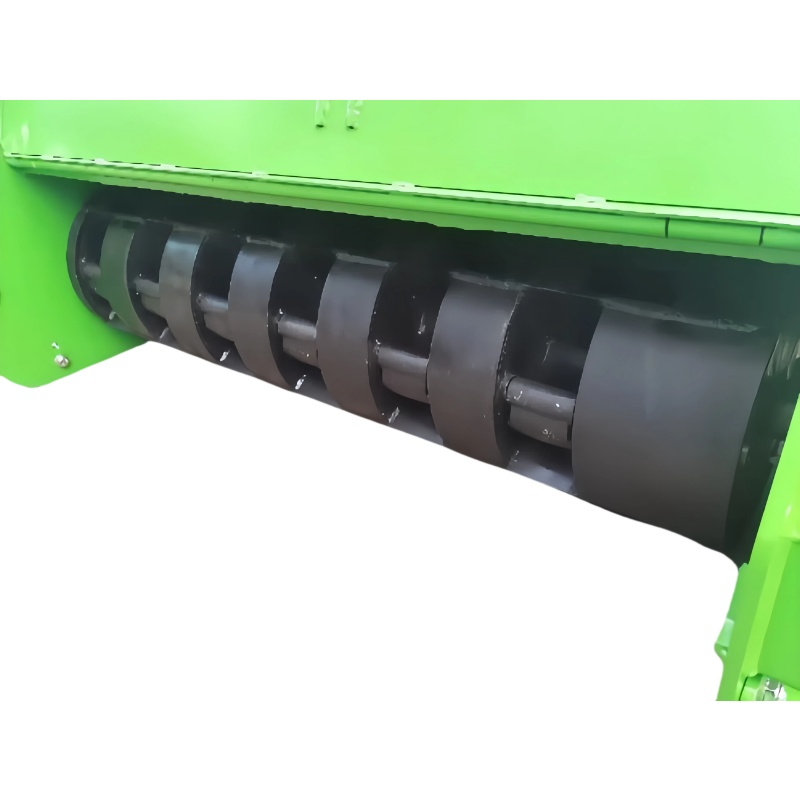

3.Replaceable toothed cutting drum

4.The available job widths are 1.2m and 1.8m

5.Heavy steel structures

6.Articulated debris cover for easy maintenance

7.High quality electric motor and gearbox

8.Including hoses

Parameters

Used for crushing tree shrubs, branches, vegetation, exposed tree stumps, shrubs, and crop straw.

MODEL	BMH120	BMH140	BMH180
Tractor (hp)	25-45	50-70	75-100
Hitch	Cat1	Cat2	Cat2
PTO (rpm)	540-1000	540-1000	540-1000
Working width (mm)	1200	1400	1800
Total width (mm)	1505	1720	2120
Weight (kg)	860	990	990
Rotor diameter (mm)	1250	1380	1380
No. Quantity of alloy knives/black steel knives	28	32	40
No. of hammer blades	20	24	32
Weight（kg)	530	732	858
Max shredding diameter (mm)	50	100	100
Maximum working depth (mm)	100	150	150
Tool shaft speed (Rpm)		1800-2500
Belt		B-section
Belt Adjustment		Manual Mechanical Tension

Details Images

Key attributes

Industry-specific attributes

brand name JUMA

Other attributes

type	Forestry covering machine
warranty	1 Year
core components	Gearbox
place of origin	Jiangsu, China
key selling points	Suitable for 25-100 HP tractors
video outgoing-inspection	Provided
machinery test report	Provided
Gross weight	530-858 kgs
Feature	Discover the forestry mulchers
Customized service	Available
Sample service	Yes
MOQ	2 Units
After-sales Service Provided	Online support
After Warranty Service	Online support
Local Service Location	None
Certification	CE
