Lawn Mower AG
Cast-iron gearbox with free wheel,sturdy toothed belts,high qualityForged hammers blades
Send Inquiry
Product Description
1.Industrial Machinery/Agricultural Machinery & Equipment/Other Farm Machines
2.Tractor Hydraulic Flail Mower with Hammer Blades Mulcher
AG FLAIL MOWER
ther recommendations for your business
(BELH BELM EFL EFM …. )
Basic Info
Model NO. AG
Specificatio CE
Origin Jiangsu Province,China(Mainland)
Transport Package ron Pallet
Trademark JUMA
Production Capacity 5000 PCS/Year
Product descriptions
AG Flail mower
1.High welding proceses and surface quality,low weight and power.
2. Cast-iron gearbox with free wheel,sturdy toothed belts,high qualityForged hammers blades
3. CAT I and II three point hitch Suitable for medium and large tractors.
4.Spiral blade axle to save the power and protect the gearbox
5. Hydraulic side shift system
Product Parameters
30-90hp tractor Medium duty mower double quantity blades with ce
| Specifications | FLAIL MOWER | ||||
| HEAVY DUTY | |||||
| Model | AG140 | AG160 | AG180 | AG200 | AG220 |
| Tractor Engine HP Range | 30-50hp | 40-60hp | 50-70hp | 60-80hp | 70-90hp |
| Hitch | Cat1/2 | ||||
| Cutting Width(mm) | 1400 | 1600 | 1800 | 2000 | 2200 |
| NO.of Hammers | 20 | 24 | 24 | 28 | 32 |
| NO. of Belts | 3 | 3 | 4 | 4 | 4 |
| Weight(kg) | 320 | 355 | 390 | 425 | 460 |
| Side Movement Distance(mm) | 500 | ||||
| Cutting Height Range(mm) | 10-50 | ||||
| Gearbox HP Rating | 50hp | ||||
| Tractor PTO Speed | 540rpm | ||||
| Driveline Size | B-section | ||||
| Belt | Manual Mechanical Tension | ||||
| Belt Adjustment | 1 year | ||||
| Mower Warranty | 1 year | ||||
| Gearbox Warranty(limited) | |||||

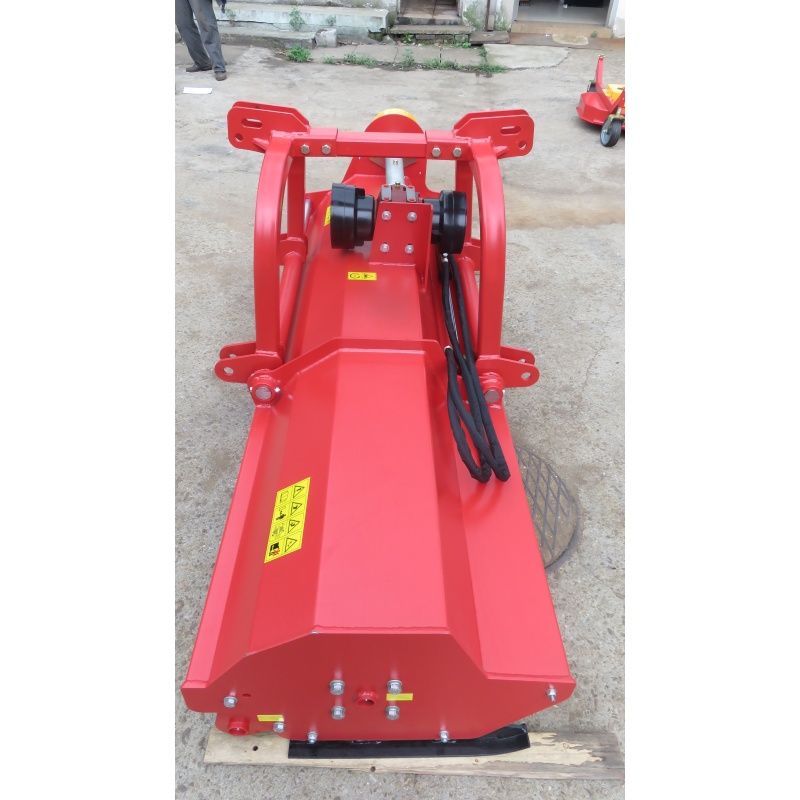

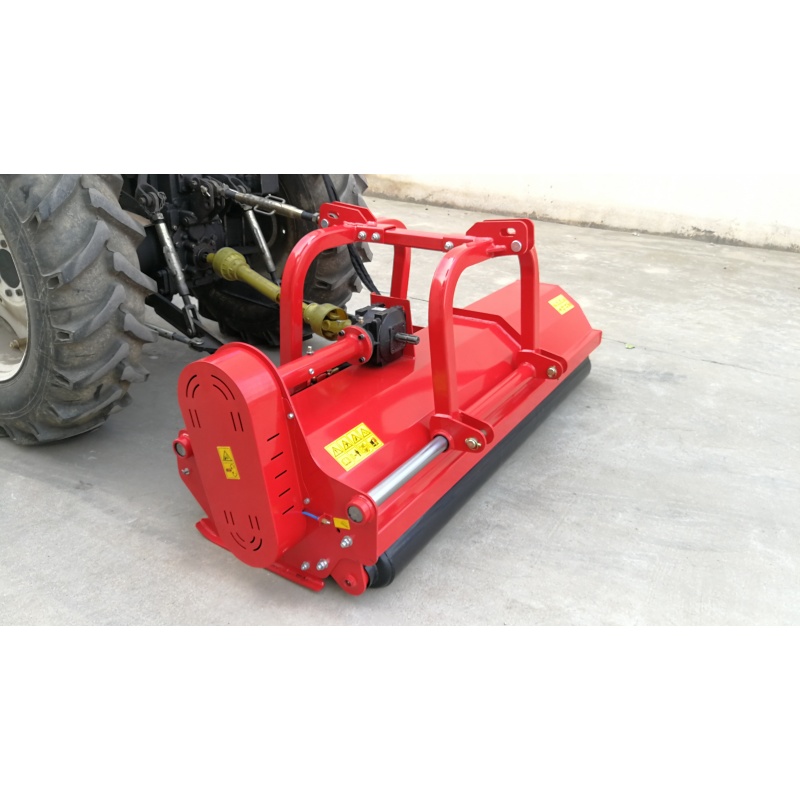

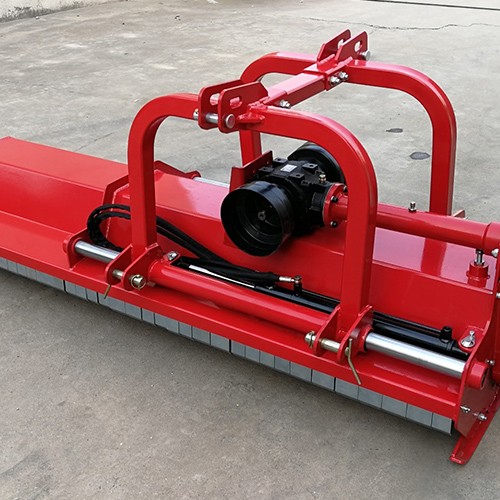

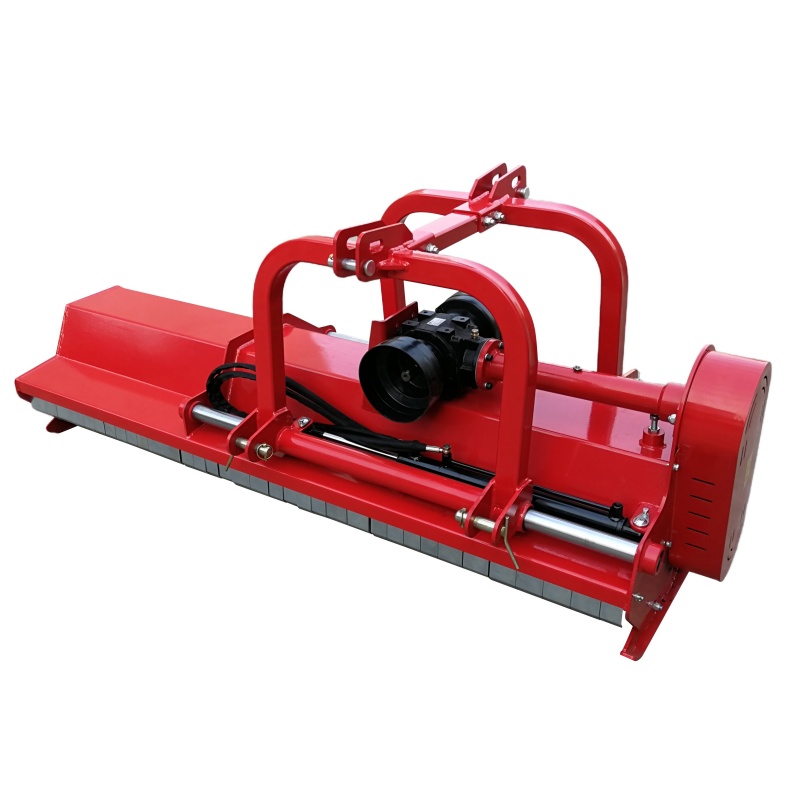

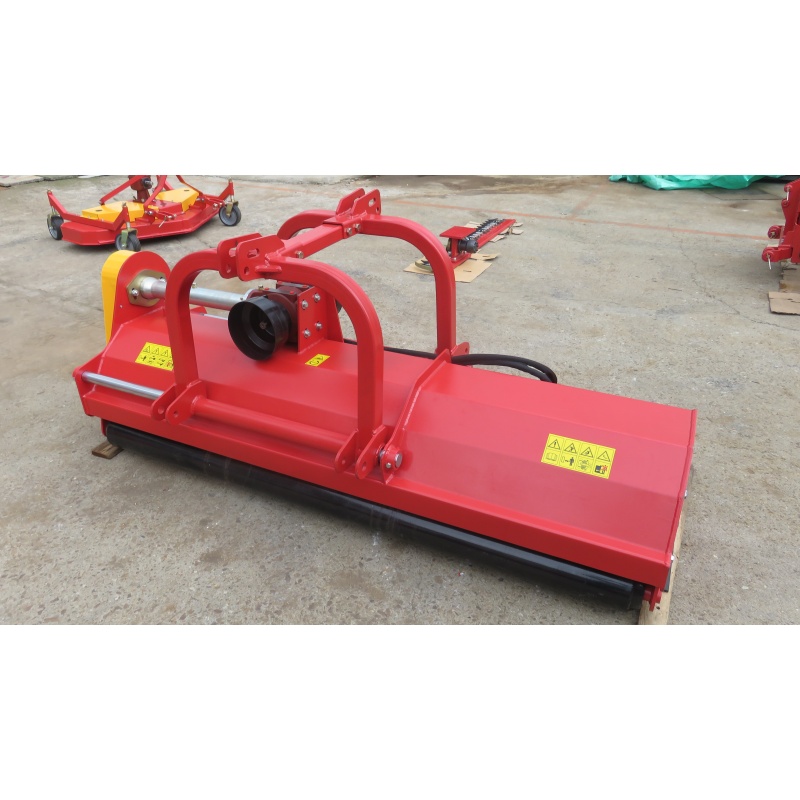

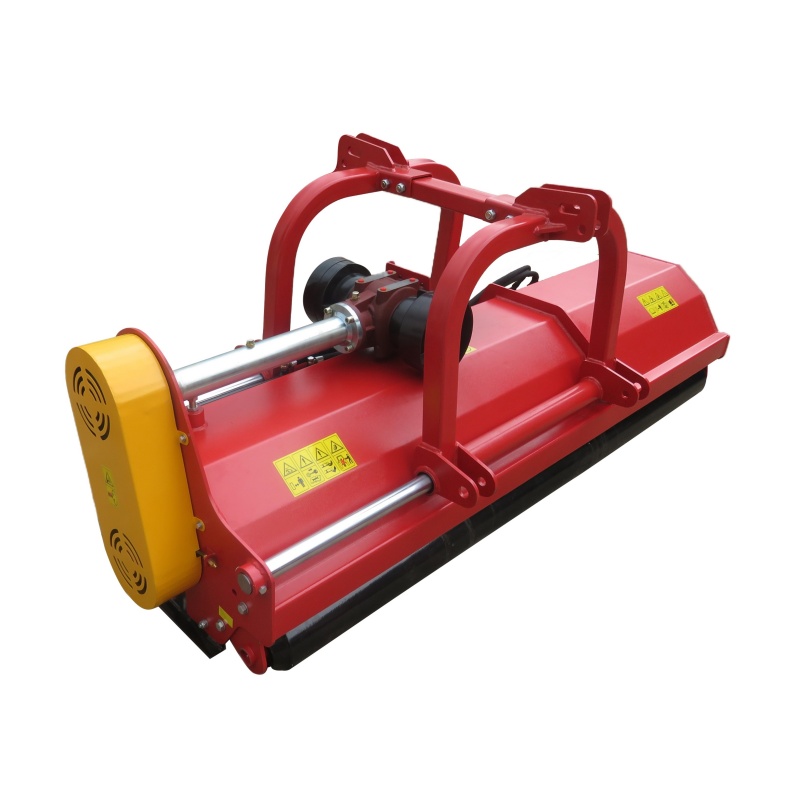

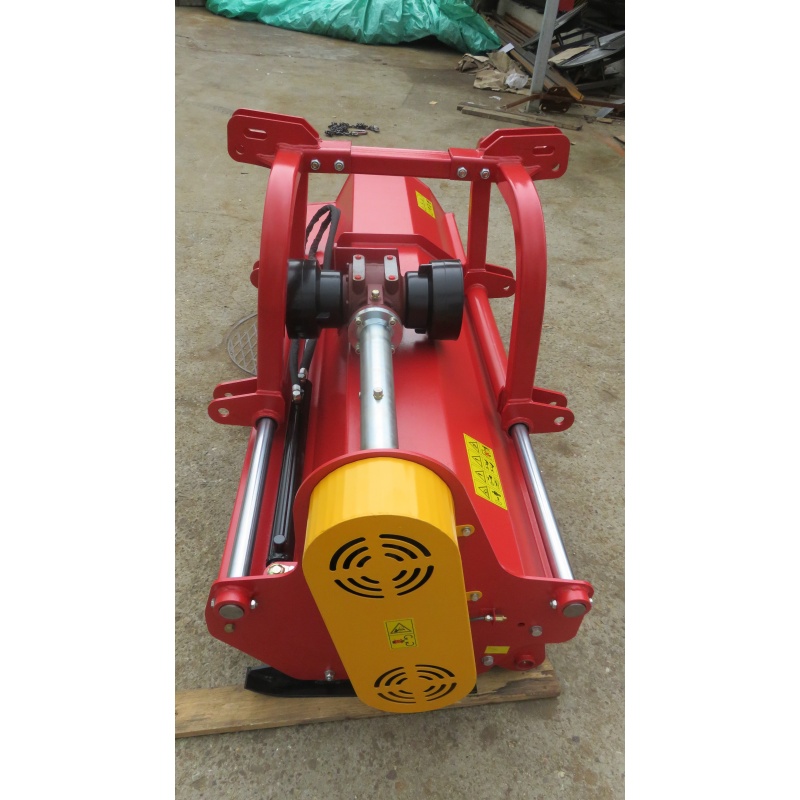

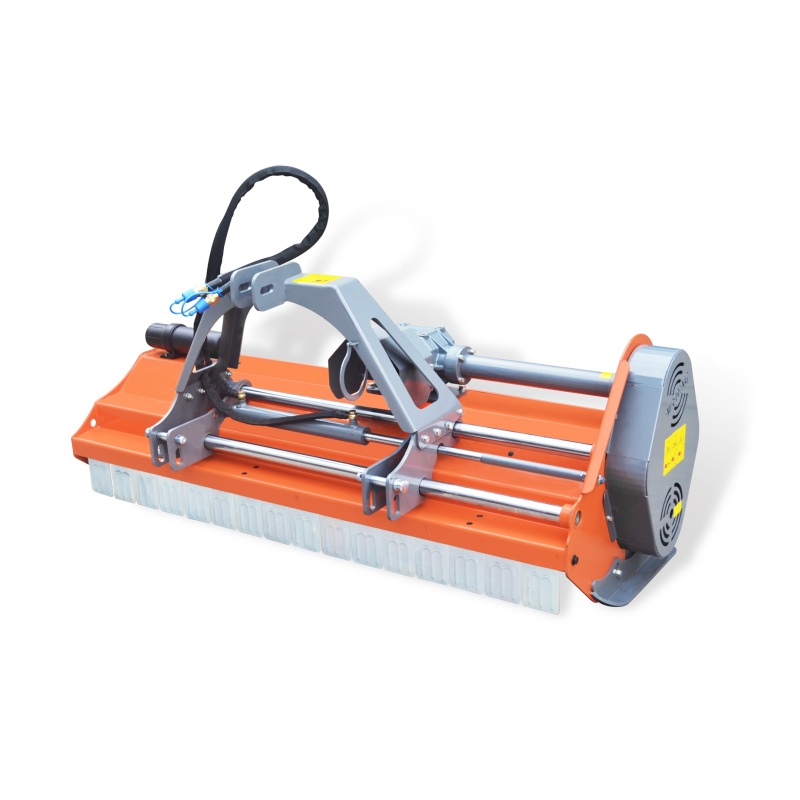

Details Images
Key attributes
Industry-specific attributes
brand name JUMA
Other attributes
| type | Flail mower |
| Warranty | 1 Year |
| Core Components | Gearbox |
| Place of Origin | Jiangsu, China |
| key selling points | Suitable for 30-90 HP tractors |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| tGross weight | 340-480 kgs |
| Feature | Cutting grass |
| Customized service | Available |
| Sample service | Yes |
| MOQ | 2 Units |
| After-sales Service Provided | Online support |
| After Warranty Service | Online support |
| Local Service Location | None |
| Certification | CE |
Packaging and delivery
Selling Units:Single item
Single package size:138X80X62 cm
Single gross weight:355 kg
Supply Ability
300 Unit/Units per Month
Show less
Lead time
Quantity (units) 1 - 300 > 300
Lead time (days) 60 To be negotiated
Customization options
Customized packaging (Min. order: 2 units)
Graphic customization (Min. order: 2 units)
Customized logo (Min. order: 2 units)
Price
2-4 units:980
5-10 units:950
10+ units:905
