Lawn Mower KGH
Cast-iron gearbox with free wheel,sturdy toothed belts,high qualityForged hammers blades
Send Inquiry
Product Description
1.Industrial Machinery/Agricultural Machinery & Equipment/Other Farm Machines

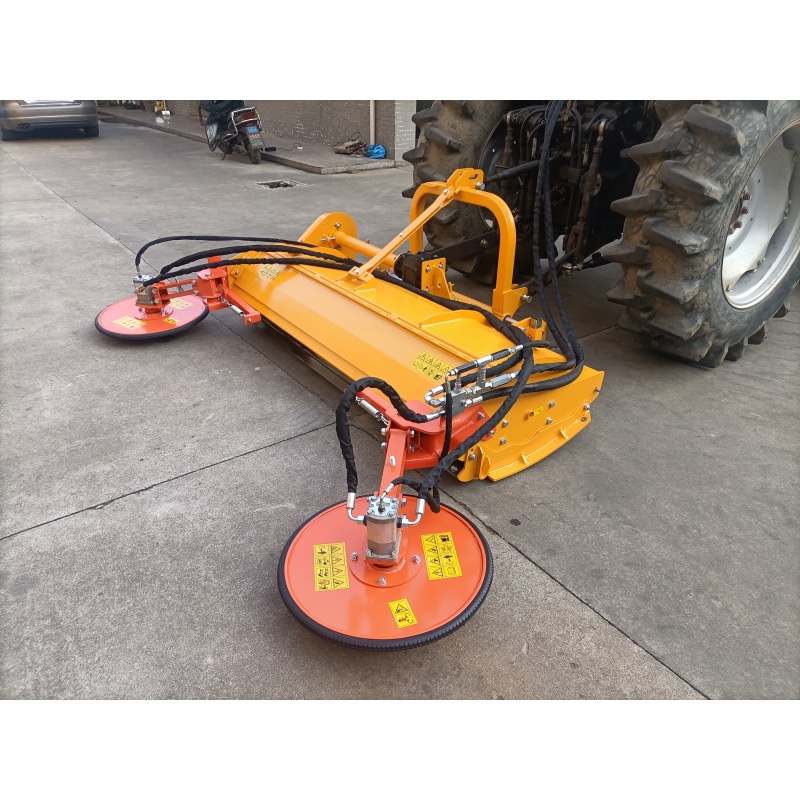

2.Tractor PTO heavy-duty bidirectional disc obstacle avoidance lawn mower

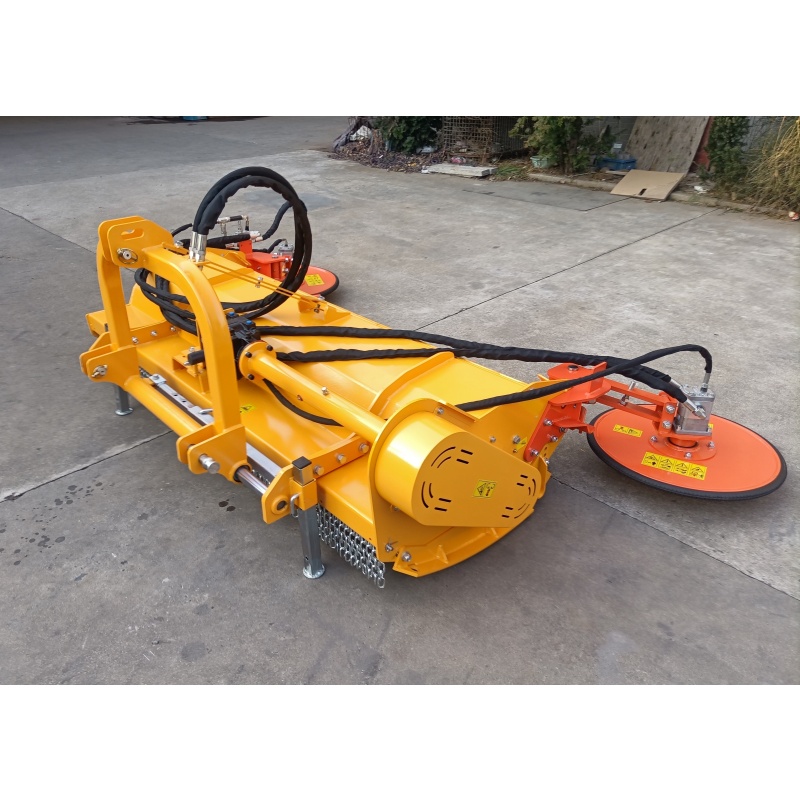

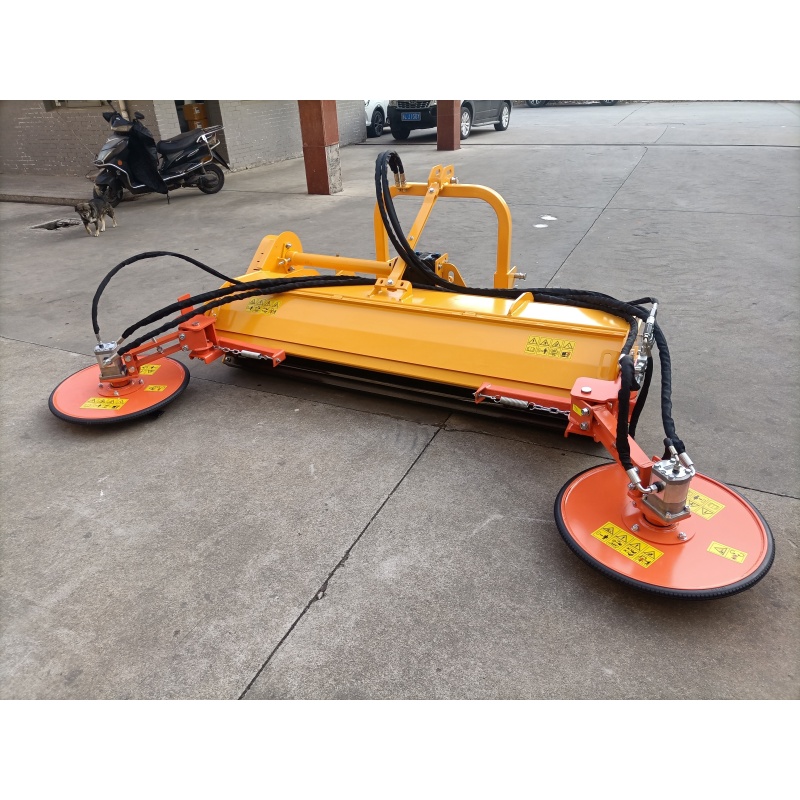

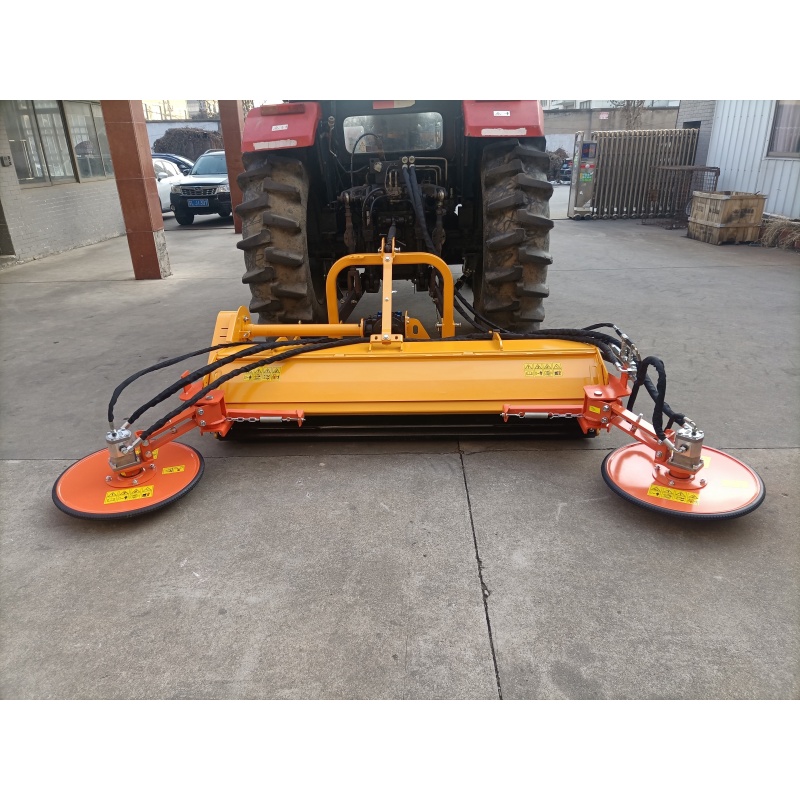

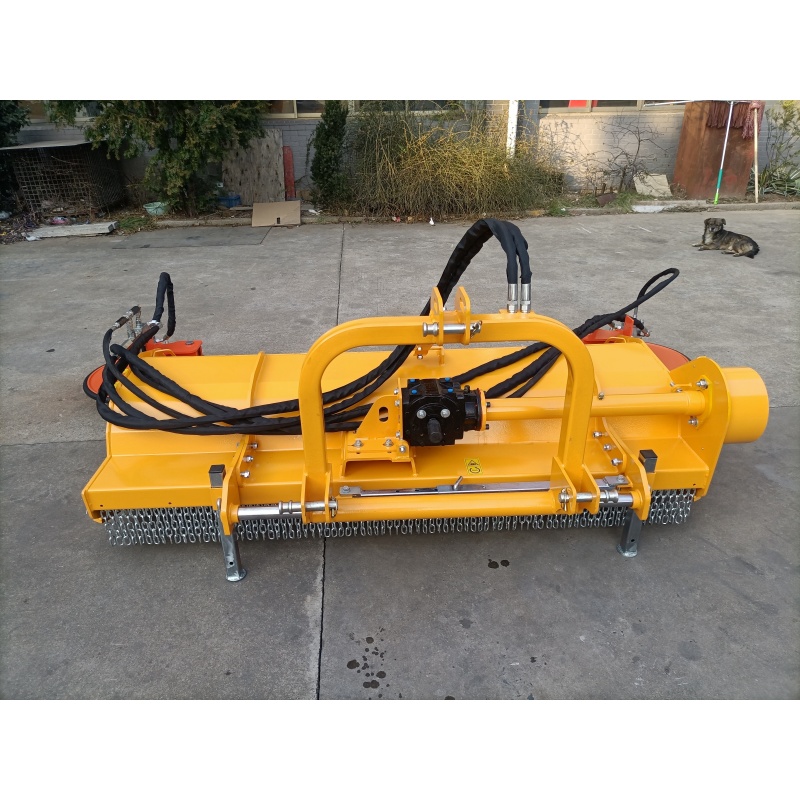

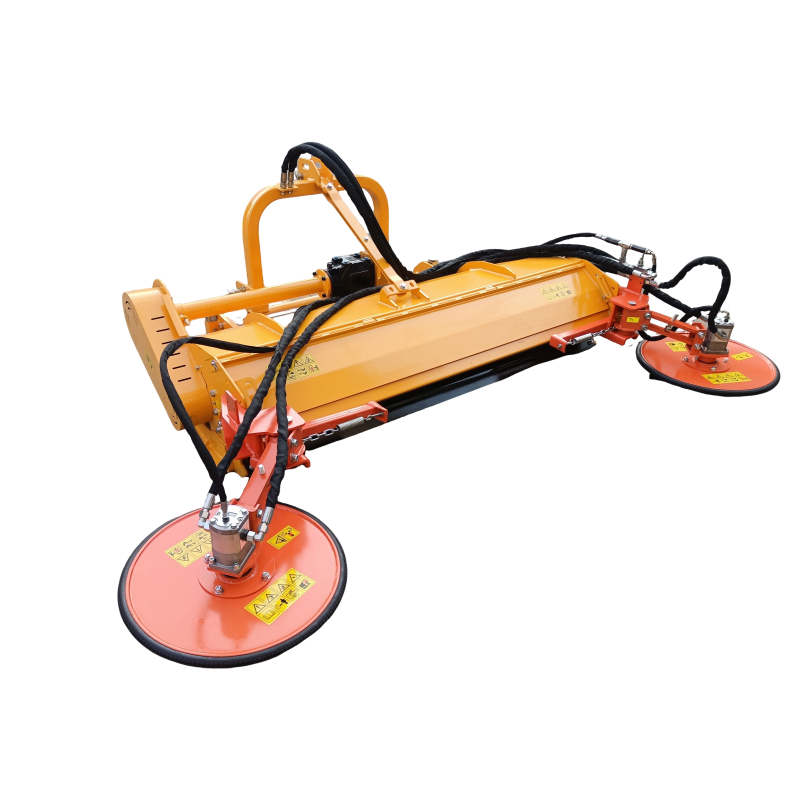

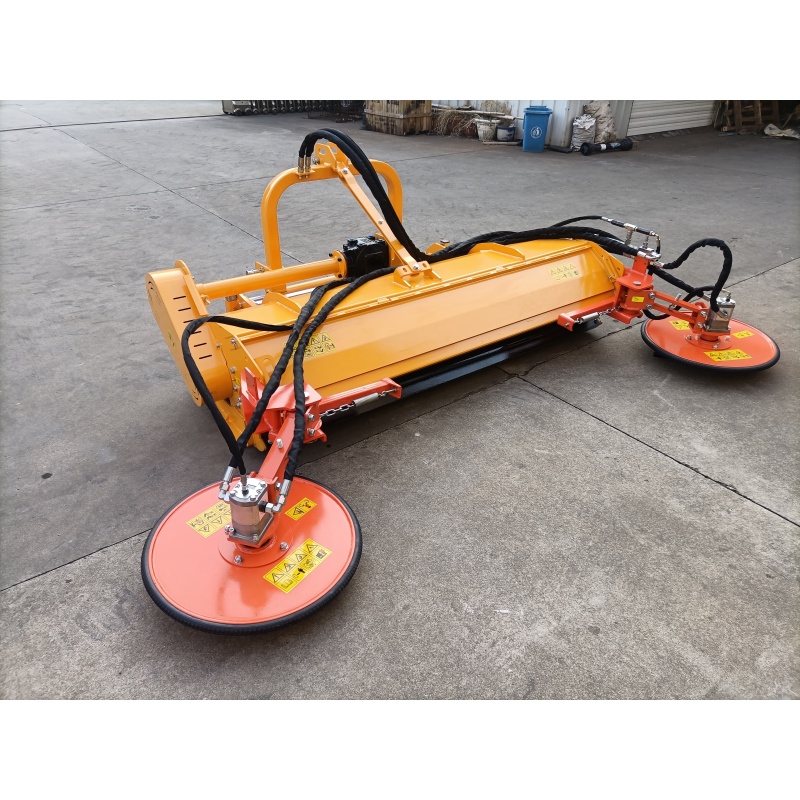

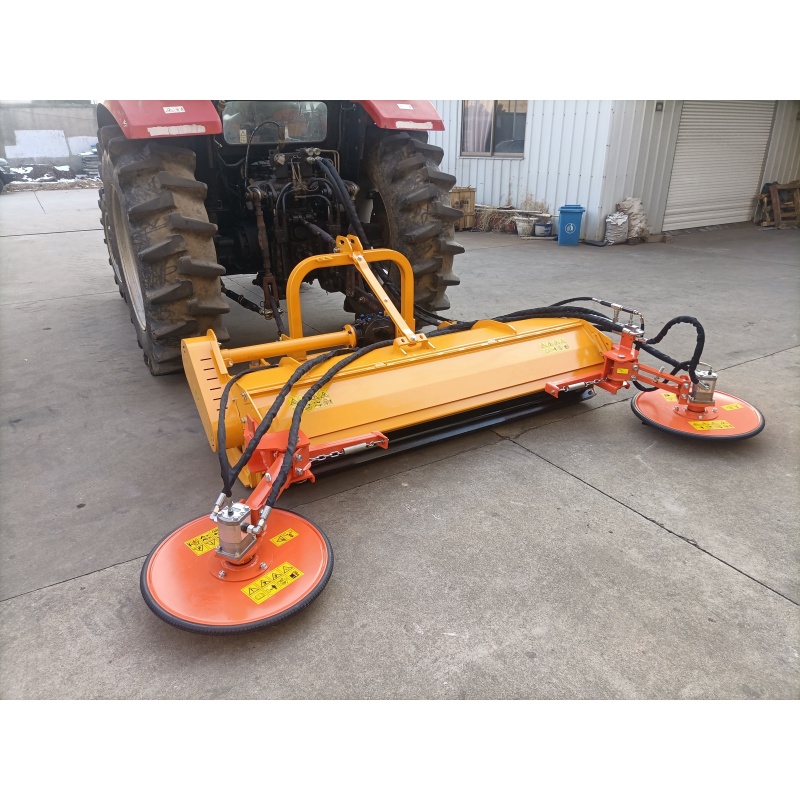

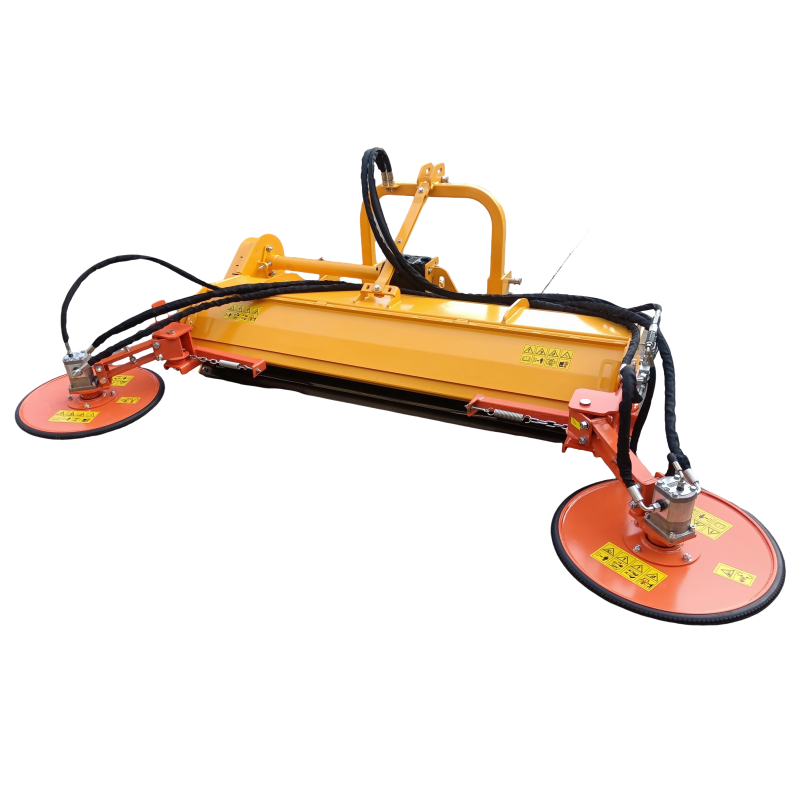

KGH avoidance lawn mower
ther recommendations for your business
(BELH BELM EFL EFM …. )
Basic Info
Model NO. KGH
Specificatio CE
Origin Jiangsu Province,China(Mainland)
Transport Package ron Pallet
Trademark JUMA
Production Capacity 5000 PCS/Year
Product descriptions

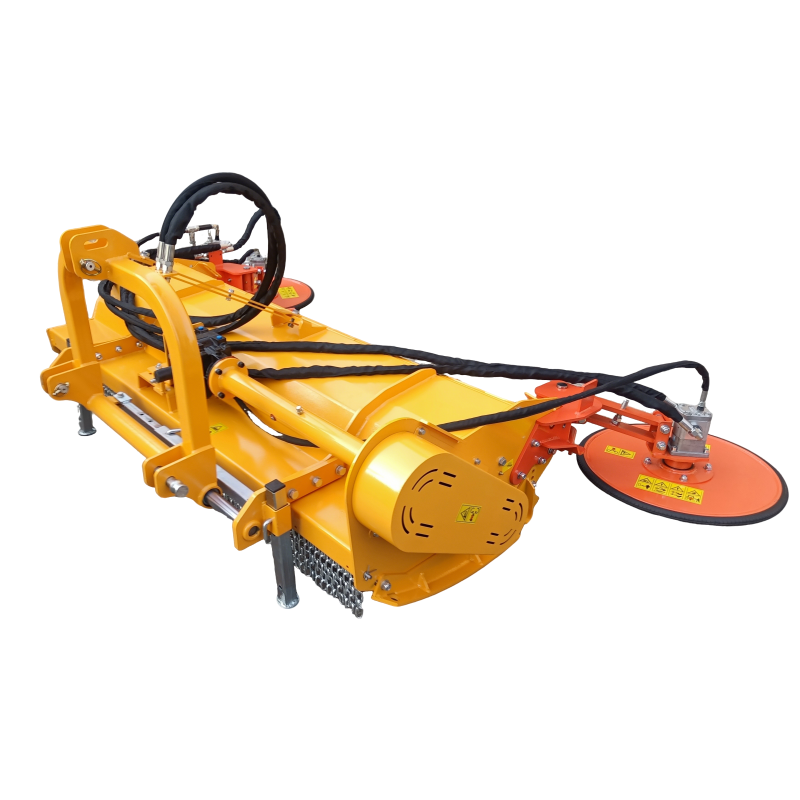

KGH Flail mower
1.High welding proceses and surface quality,low weight and power.
2. Cast-iron gearbox with free wheel,sturdy toothed belts,high qualityForged hammers blades
3. CAT I and II three point hitch Suitable for medium and large tractors.
4.Spiral blade axle to save the power and protect the gearbox
5. Hydraulic side shift system
6. Rear door system
Product Parameters
40-90hp tractor Medium duty mower double quantity blades with ce
| Specifications | FLAIL MOWERS | |||
| HEAVY-DUTY | ||||
| Model | KGH180 | KGH200 | KGH220 | KGH240 |
| Model | TS60+ | TS60+ | TS60+ | ST60+ |
| Tractor Engine HP Range | 40-60 hp | 50-70 hp | 60-80 hp | 70-90 hp |
| Hitch | Cat1/2 | |||
| Cutting Width(mm) | 1800+1000 | 2000+1000 | 2200+1000 | 2400+1000 |
| NO.of Hammers | 16 | 18 | 20 | 22 |
| NO. of Belts | 4 | 4 | 4 | 5 |
| Weight(kg) | 540 | 580 | 620 | 720 |
| Side Movement Distance(mm) | 350mm | |||
| Cutting Height Range(mm) | 10-50mm | |||
| Gearbox HP Rating | 50hp | |||
| Tractor PTO Speed | 540rpm | |||
| Driveline Size | T6 | |||
| Belt | B-section | |||
| Belt Adjustment | Manual Mechanical Tension | |||
| Mower Warranty | 1 year | |||
| Gearbox Warranty(limited) | 1 year | |||
Details Images
Key attributes
Industry-specific attributes
brand name JUMA
Other attributes
| Warranty | 1.5 Year |
| Core Components | Gearbox |
| Place of Origin | Jiangsu, China |
| key selling points | High Safety Level |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| type | KDH-L |
| use | grass cutting |
| Feature | Cutting grass |
| Delivery time | 45days |
| Customized service | Available |
| Sample service | Yes |
| MOQ | 2 Units |
| Gross weight | 500-680kgs |
| Color | Customer Required |
| Function | cut grass |
| Quality | 100% new |
| Warranty | 1 year |
Packaging and delivery
Selling Units:Single item
Single package size:208X95X82 cm
Single gross weight:550 kg
Supply Ability
300 Unit/Units per Month
Show less
Lead time
Quantity (units) 1 - 300 > 300
Lead time (days) 60 To be negotiated
Customization options
Customized packaging (Min. order: 2 units)
Graphic customization (Min. order: 2 units)
Customized logo (Min. order: 2 units)
Price
2-4 units:1980
5-10 units:1950
10+ units:1930
