Lawn Mower KDK
Cast-iron gearbox with free wheel,sturdy toothed belts,high qualityForged hammers blades
Send Inquiry
Product Description
1.Industrial Machinery/Agricultural Machinery & Equipment/Other Farm Machines
2.Tractor Hydraulic Flail Mower with Hammer Blades Mulcher
KDK FLAIL MOWER
ther recommendations for your business
(BELH BELM EFL EFM …. )
Basic Info
Model NO. KDK
Specificatio CE
Origin Jiangsu Province,China(Mainland)
Transport Package ron Pallet
Trademark JUMA
Production Capacity 5000 PCS/Year
Product descriptions
KDK Flail mower
1.High welding proceses and surface quality,low weight and power.
2. Cast-iron gearbox with free wheel,sturdy toothed belts,high qualityForged hammers blades
3. CAT I and II three point hitch Suitable for medium and large tractors.
4.Spiral blade axle to save the power and protect the gearbox
5. Hydraulic side shift system
6. Rear door system
Product Parameters
40-90hp tractor Medium duty mower double quantity blades with ce
| Model | KDK180 | KDK200 | KDK220 | KDK240 |
| Tractor Engine HP Range | 40-60 hp | 50-70 hp | 60-80 hp | 70-90 hp |
| Cutting Width(mm) | 1800 | 2000 | 2200 | 2400 |
| Hitch | Cat1/2 | |||
| NO.of Hammers | 16 | 18 | 20 | 22 |
| NO. of Belts | 4 | 5 | ||
| Weight(kg) | 480 | 520 | 560 | 660 |
| Side Movement Distance(mm) | 350mm | |||
| Cutting Height Range(mm) | 10-50mm | |||
| Gearbox HP Rating | 50hp | 70hp | ||
| Tractor PTO Speed | 540rpm | |||
| Driveline Size | T6 | |||
| Belt | B-section | |||
| Belt Adjustment | Manual Mechanical Tension | |||

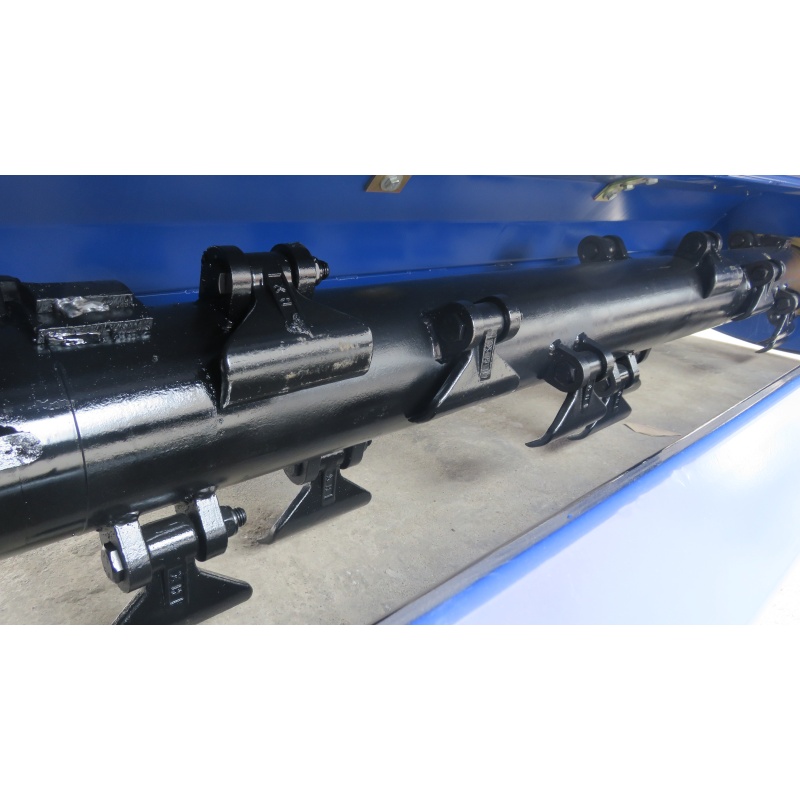

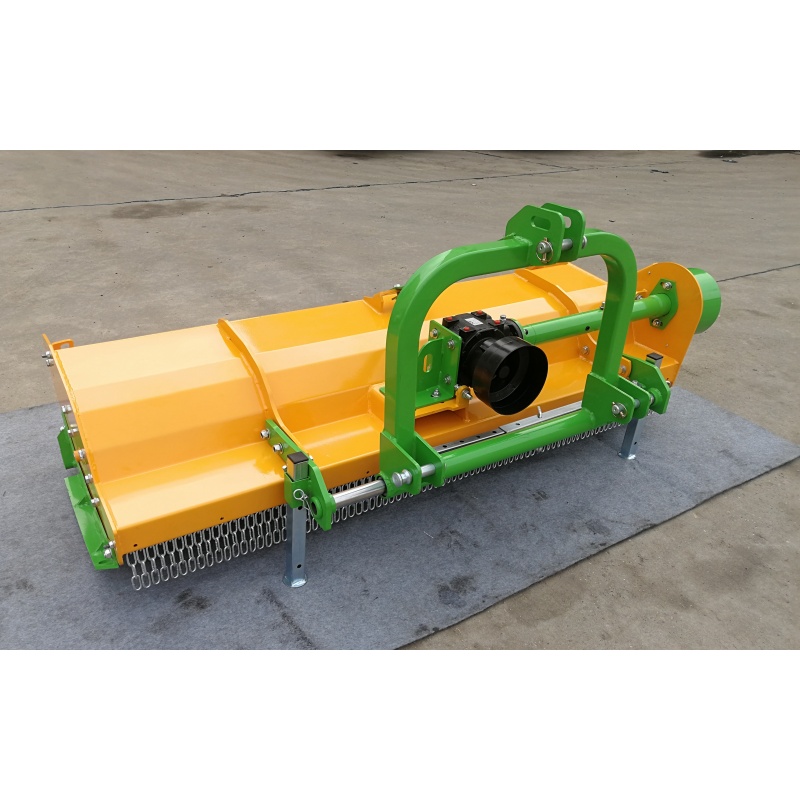

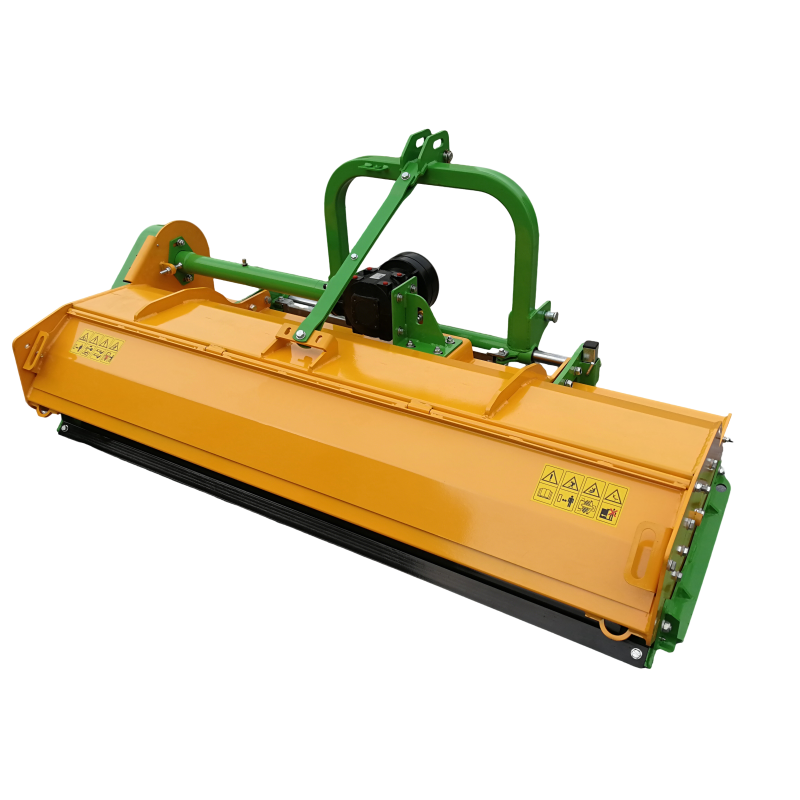

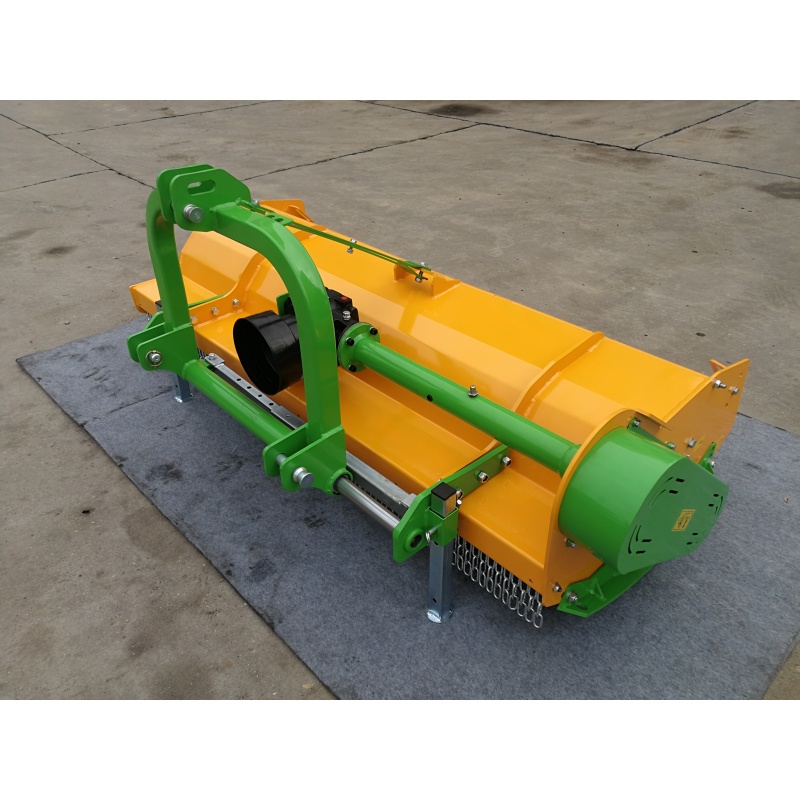

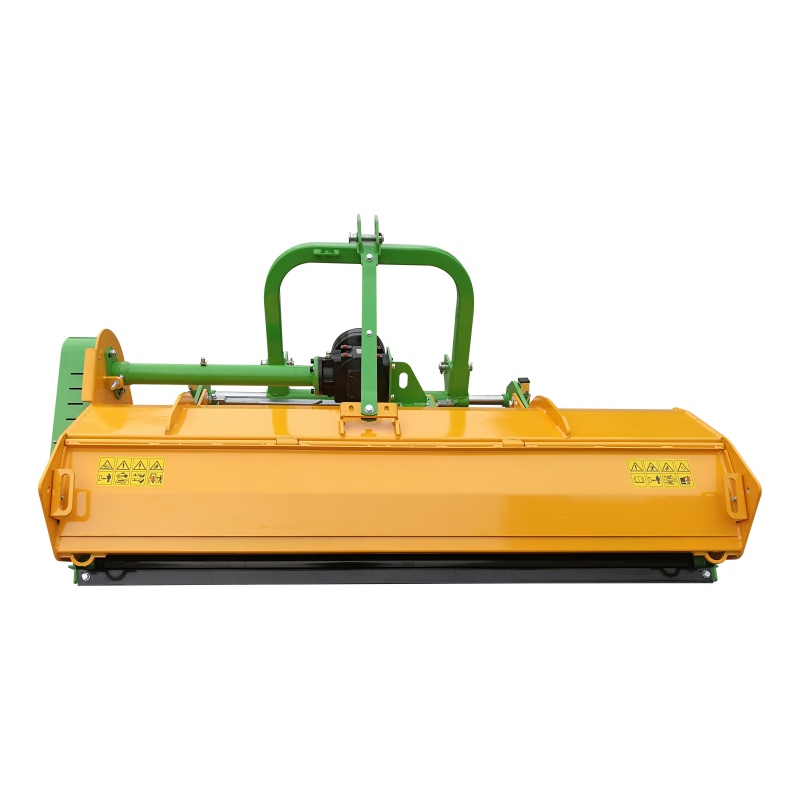

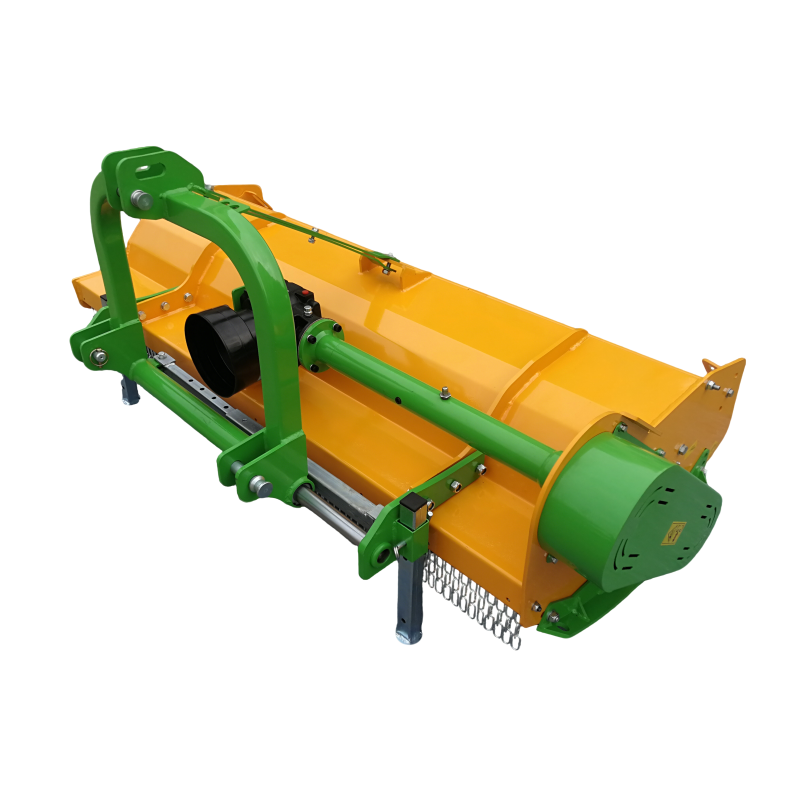

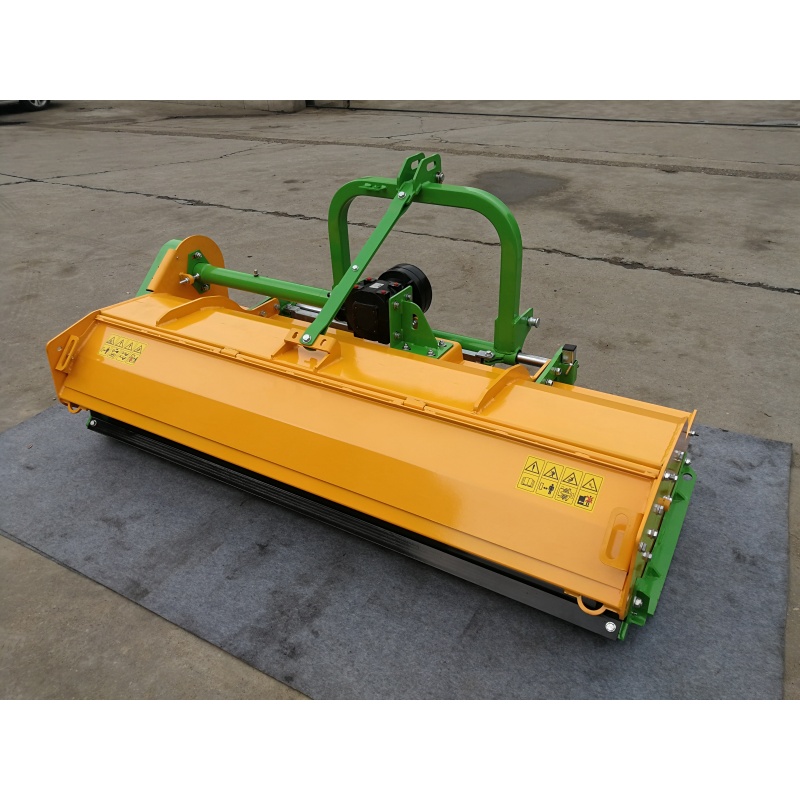

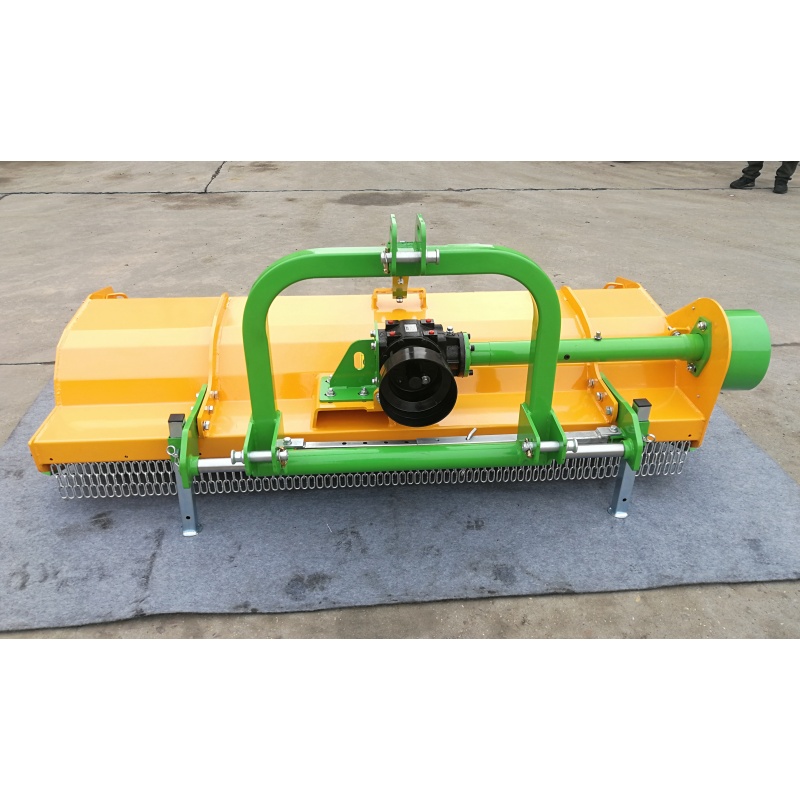

Details Images
Key attributes
Industry-specific attributes
brand name JUMA
Other attributes
| type | Flail mower |
| Warranty | 1 Year |
| Core Components | Gearbox |
| Place of Origin | Jiangsu, China |
| key selling points | Suitable for 40-90 HP tractors |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| tGross weight | 480-560 kgs |
| Feature | Cutting grass |
| Customized service | Available |
| Sample service | Yes |
| MOQ | 2 Units |
| After-sales Service Provided | Online support |
| After Warranty Service | Online support |
| Local Service Location | None |
| Certification | CE |
Packaging and delivery
Selling Units:Single item
Single package size:208X95X82 cm
Single gross weight:525 kg
Supply Ability
300 Unit/Units per Month
Show less
Lead time
Quantity (units) 1 - 300 > 300
Lead time (days) 60 To be negotiated
Customization options
Customized packaging (Min. order: 2 units)
Graphic customization (Min. order: 2 units)
Customized logo (Min. order: 2 units)
Price
2-4 units:1050
5-10 units:1020
10+ units:980
